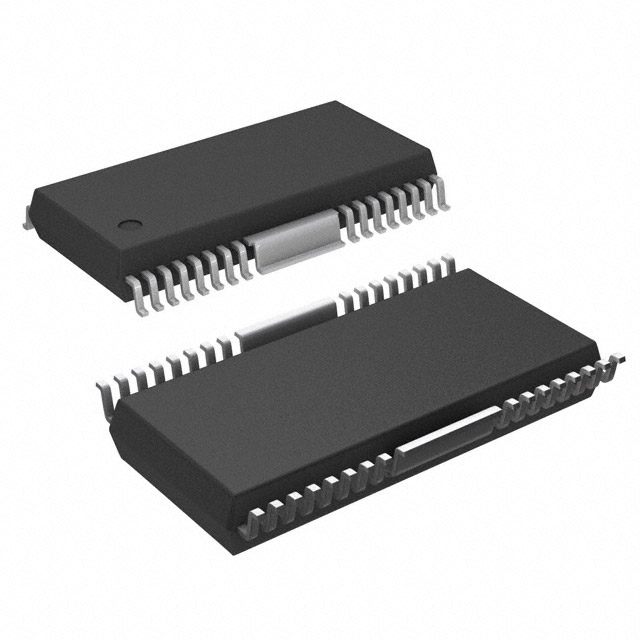

AN44071A-VF
PMIC - Motor Drivers, Controllers
- Manufacturer No:
- AN44071A-VF
- Manufacture:
- Panasonic Electronic Components
- Package:
- 56-TFSOP (0.240", 6.10mm Width) Exposed Pad
- Datasheet:
- AN44071A-VF
- Description:
- IC MTR DRV BIPOLAR 10-34V 56HSOP
In Stock
5773 pcs On sales
$0
Product Parameter
- Base Part Number
- AN44071A
- Series
- -
- Current - Output
- 1A, 1.7A
- Function
- Driver - Fully Integrated, Control and Power Stage
- Voltage - Supply
- 10V ~ 34V
- Interface
- Parallel, PWM
- Motor Type - AC, DC
- -
- Packaging
- Digi-Reel®
- Motor Type - Stepper
- Bipolar
- Technology
- Power MOSFET
- Output Configuration
- Half Bridge (8)
- Part Status
- Active
- Operating Temperature
- -20°C ~ 120°C (TJ)
- Applications
- General Purpose
- Supplier Device Package
- 56-HSOP
- Mounting Type
- Surface Mount
- Package / Case
- 56-TFSOP (0.240", 6.10mm Width) Exposed Pad
- Voltage - Load
- 10V ~ 34V
- Step Resolution
- 1, 1/2, 1/8, 1/16, 1/32
