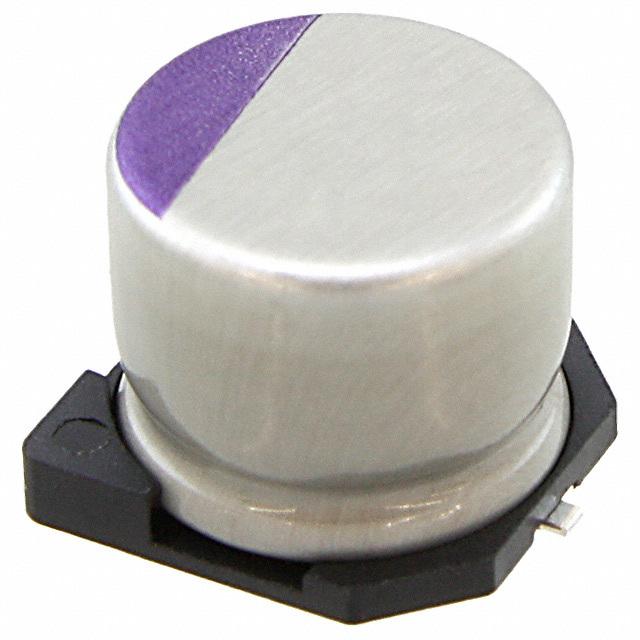

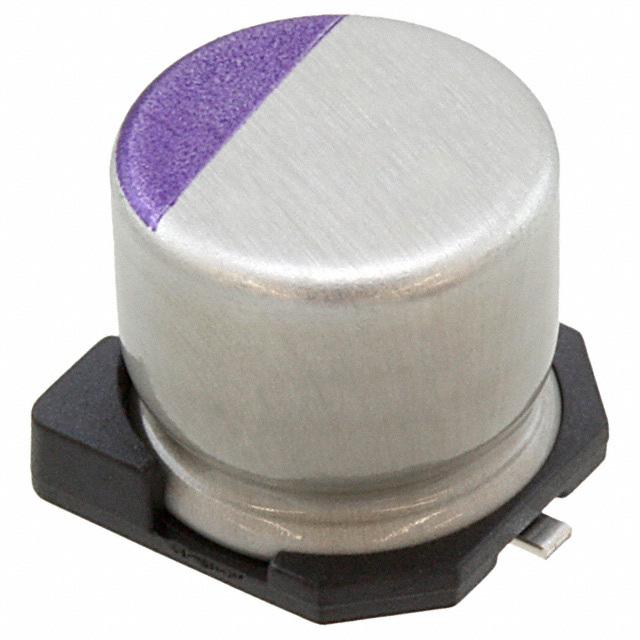

6SVPE150M
Aluminum - Polymer Capacitors
- Manufacturer No:
- 6SVPE150M
- Manufacture:
- Panasonic Electronic Components
- Package:
- Radial, Can - SMD
- Datasheet:
- 6SVPE150M
- Description:
- CAP ALUM POLY 150UF 20% 6.3V SMD
In Stock
9289 pcs On sales
$0
Product Parameter
- Lead Spacing
- -
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
- Voltage - Rated
- 6.3V
- Type
- Polymer
- Lifetime @ Temp.
- 2000 Hrs @ 105°C
- Series
- OS-CON™, SVPE
- Size / Dimension
- 0.197" Dia (5.00mm)
- Ratings
- -
- Height - Seated (Max)
- 0.236" (6.00mm)
- Packaging
- Digi-Reel®
- Operating Temperature
- -55°C ~ 105°C
- Tolerance
- ±20%
- Surface Mount Land Size
- 0.209" L x 0.209" W (5.30mm x 5.30mm)
- Capacitance
- 150µF
- Ripple Current @ Low Frequency
- 176mA @ 120Hz
- Part Status
- Active
- Ripple Current @ High Frequency
- 3.52A @ 100kHz
- Applications
- General Purpose
- ESR (Equivalent Series Resistance)
- 12mOhm
