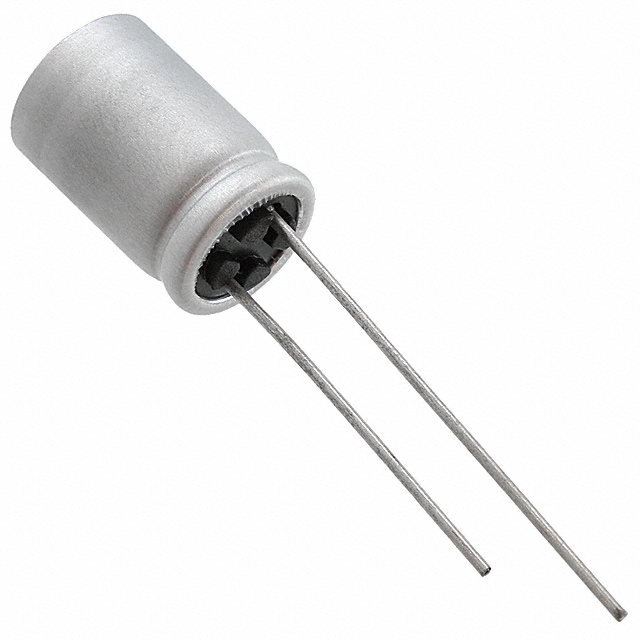

2R5SVPC390M
Aluminum - Polymer Capacitors
- Manufacturer No:
- 2R5SVPC390M
- Manufacture:
- Panasonic Electronic Components
- Package:
- Radial, Can - SMD
- Datasheet:
- 2R5SVPC390M
- Description:
- CAP ALUM POLY 390UF 20% 2.5V SMD
In Stock
1955 pcs On sales
$0.95
Product Parameter
- Applications
- General Purpose
- ESR (Equivalent Series Resistance)
- 25mOhm
- Lead Spacing
- -
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
- Voltage - Rated
- 2.5V
- Type
- Polymer
- Lifetime @ Temp.
- 2000 Hrs @ 105°C
- Series
- OS-CON™, SVPC
- Size / Dimension
- 0.248" Dia (6.30mm)
- Ratings
- -
- Height - Seated (Max)
- 0.236" (6.00mm)
- Packaging
- Cut Tape (CT)
- Operating Temperature
- -55°C ~ 105°C
- Tolerance
- ±20%
- Surface Mount Land Size
- 0.260" L x 0.260" W (6.60mm x 6.60mm)
- Capacitance
- 390µF
- Ripple Current @ Low Frequency
- 120.5mA @ 120Hz
- Part Status
- Active
- Ripple Current @ High Frequency
- 2.41A @ 100kHz
