100SXV15M
Aluminum - Polymer Capacitors
- Manufacturer No:
- 100SXV15M
- Manufacture:
- Panasonic Electronic Components
- Package:
- Radial, Can - SMD
- Datasheet:
- 100SXV15M
- Description:
- CAP ALUM POLY 15UF 20% 100V SMD
In Stock
3567 pcs On sales
$0
Product Parameter
- Applications
- General Purpose
- ESR (Equivalent Series Resistance)
- 40mOhm @ 100kHz
- Lead Spacing
- -
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
- Voltage - Rated
- 100V
- Type
- Polymer
- Lifetime @ Temp.
- 1000 Hrs @ 125°C
- Series
- OS-CON™, SXV
- Size / Dimension
- 0.315" Dia (8.00mm)
- Ratings
- -
- Height - Seated (Max)
- 0.472" (12.00mm)
- Packaging
- Digi-Reel®
- Operating Temperature
- -55°C ~ 125°C
- Tolerance
- ±20%
- Surface Mount Land Size
- 0.327" L x 0.327" W (8.30mm x 8.30mm)
- Capacitance
- 15µF
- Ripple Current @ Low Frequency
- 117.5mA @ 120Hz
- Part Status
- Active
- Ripple Current @ High Frequency
- 2.35A @ 100kHz
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
100SXV15M Relevant information

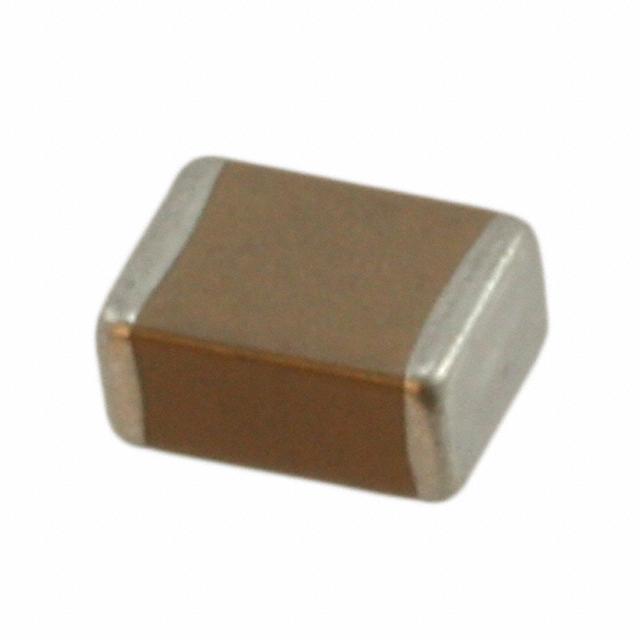

100S41Y226ZV4E
CAP CER 22UF 10V Y5V 1210

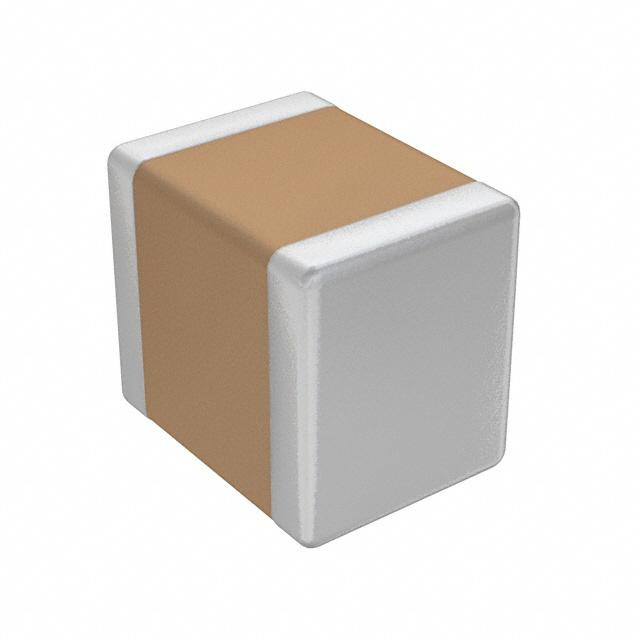

100S43X476MV4E
CAP CER 47UF 10V X5R 4532

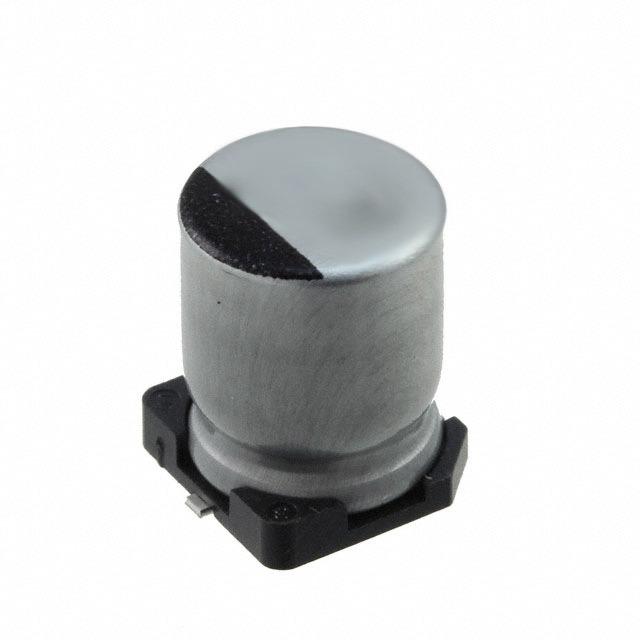

100SEV100M12.5X16
CAP ALUM 100UF 20% 100V SMD

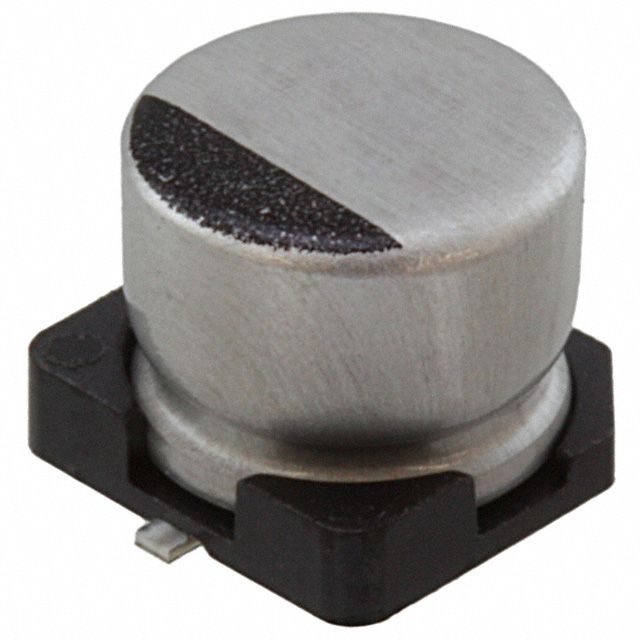

100SEV10M8X10.5
