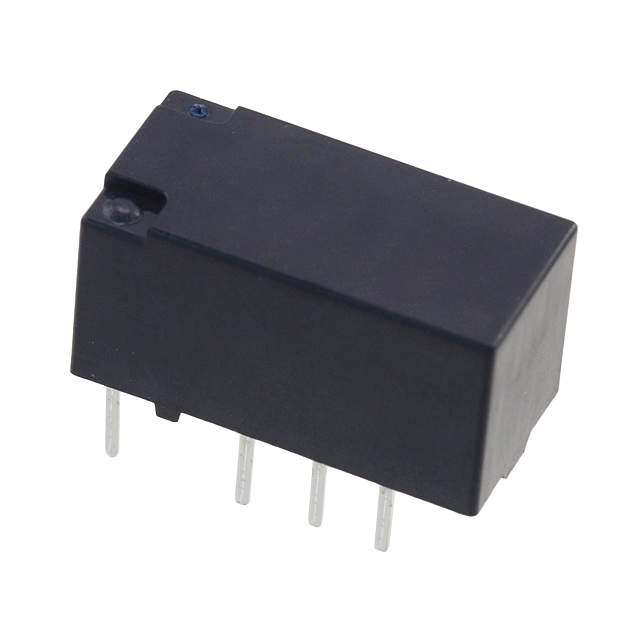

TXD2SA-2M-9V-X
Signal Relays, Up to 2 Amps
- Manufacturer No:
- TXD2SA-2M-9V-X
- Manufacture:
- Panasonic Electric Works
- Datasheet:
- TXD2SA-2M-9V-X
- Description:
- RELAY GEN PURPOSE DPDT 1A 9VDC
In Stock
0 pcs On sales
$3.3
Product Parameter
- Seal Rating
- Sealed - Fully
- Must Operate Voltage
- 6.75 VDC
- Coil Current
- 27.8mA
- Must Release Voltage
- 0.9 VDC
- Coil Voltage
- 9VDC
- Operating Temperature
- -40°C ~ 85°C
- Contact Form
- DPDT (2 Form D)
- Contact Rating (Current)
- 1A
- Operate Time
- 4ms
- Release Time
- 4ms
- Series
- TX-D
- Mounting Type
- Surface Mount
- Features
- -
- Coil Insulation
- -
- Coil Type
- Non Latching
- Coil Resistance
- 324 Ohms
- Packaging
- Tape & Reel (TR)
- Contact Material
- Silver (Ag), Gold (Au)
- Relay Type
- General Purpose
- Switching Voltage
- 110VDC - Max
- Part Status
- Active
- Termination Style
- Gull Wing
