LW W5SG-GYHY-5K8L

LED Lighting - White

Manufacturer No:: LW W5SG-GYHY-5K8L
Manufacture:: OSRAM Opto Semiconductors, Inc.
Package:: 2-SMD, Gull Wing Exposed Pad
Datasheet:: LW W5SG-GYHY-5K8L
Description:: LED GOLDEN DRAGON COOL WHT 2SMD

In Stock

0 pcs On sales

Product Parameter

Part Status: Obsolete

Lumens/Watt @ Current - Test: 23 lm/W

Current - Max: 500mA

Voltage - Forward (Vf) (Typ): 3.8V

Mounting Type: Surface Mount

Thermal Resistance of Package: 9°C/W

Viewing Angle: 120°

Current - Test: 350mA

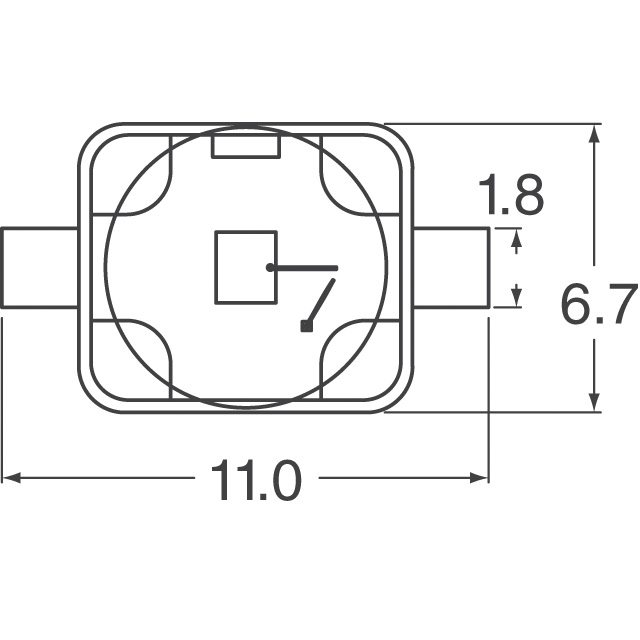

Package / Case: 2-SMD, Gull Wing Exposed Pad

Size / Dimension: 0.276" L x 0.236" W (7.00mm x 6.00mm)

Height - Seated (Max): 0.079" (2.00mm)

Color: White, Cool

Supplier Device Package: SMD

Series: Golden DRAGON®

CRI (Color Rendering Index): 80

CCT (K): 6500K

Flux @ 25°C, Current - Test: 30lm (21lm ~ 39lm)

Packaging: Tape & Reel (TR)

Flux @ 85°C, Current - Test: -
