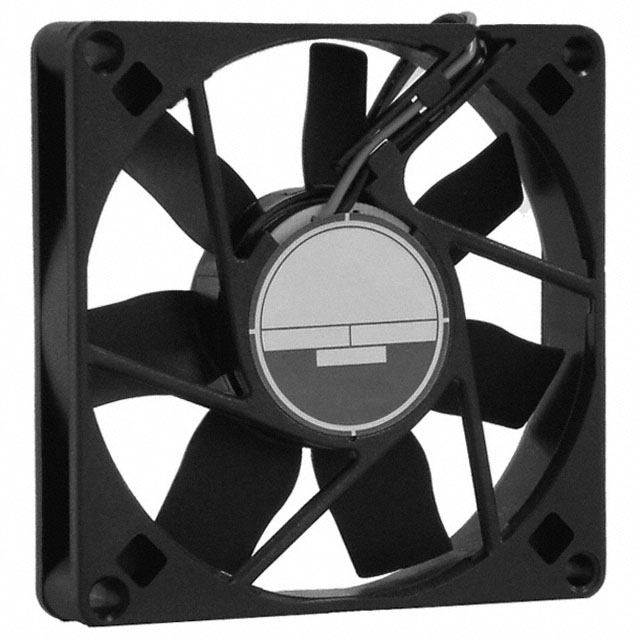

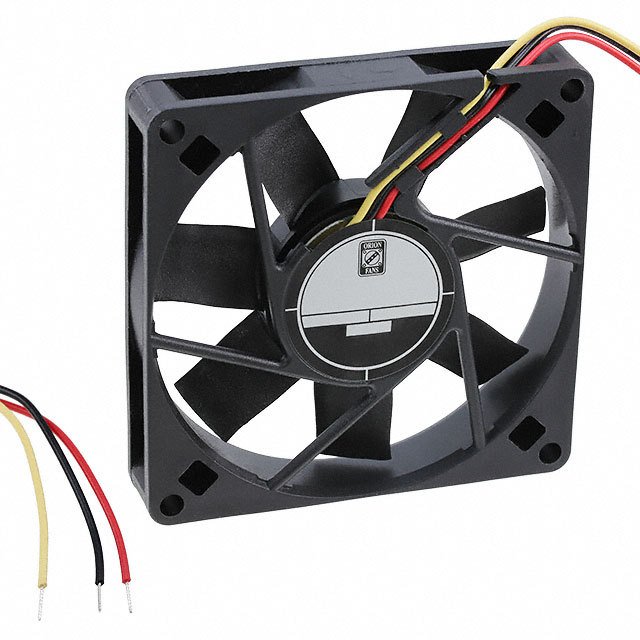

OD8025-12HBIP68
DC Brushless Fans (BLDC)
- Manufacturer No:
- OD8025-12HBIP68
- Manufacture:
- Orion Fans
- Datasheet:
- OD8025-12HBIP68
- Description:
- 12VDC 80X80X25MM IP68
In Stock
0 pcs On sales
$14.14
Product Parameter
- Bearing Type
- Ball
- RPM
- 3300 RPM
- Power (Watts)
- 2.20W
- Noise
- 33.0 dB
- Voltage Range
- -
- Width
- 25.00mm
- Static Pressure
- 0.230 in H2O (57.3 Pa)
- Series
- OD8025
- Voltage - Rated
- 12VDC
- Weight
- 0.191 lb (86.64 g)
- Lifetime @ Temp.
- 65000 Hrs @ 45°C
- Air Flow
- 40.0 CFM (1.12m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Features
- Auto Restart
- Size / Dimension
- Square - 80mm L x 80mm H
- Approvals
- cURus, TUV
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Part Status
- Active
- Current Rating (Amps)
- 0.180A
- Termination
- 2 Wire Leads
- Operating Temperature
- 5 ~ 149°F (-15 ~ 65°C)
