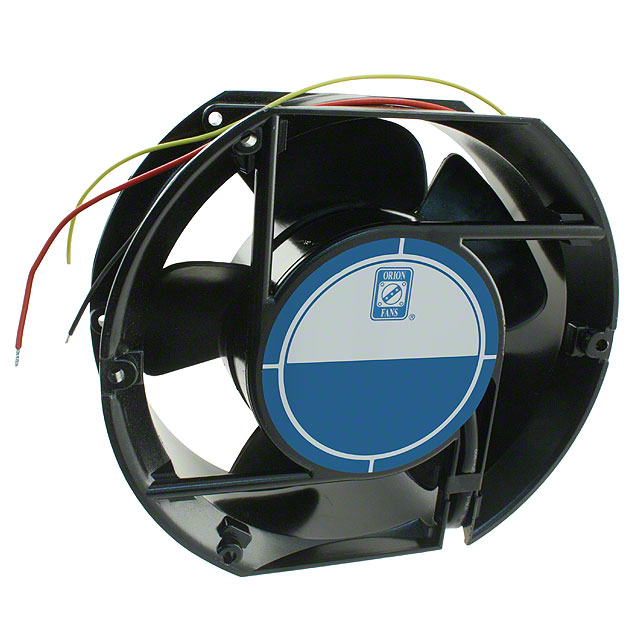

OD172SAP-48HHB10A
DC Brushless Fans (BLDC)
- Manufacturer No:
- OD172SAP-48HHB10A
- Manufacture:
- Orion Fans
- Datasheet:
- OD172SAP-48HHB10A
- Description:
- FAN AXIAL 172X50.8MM 48VDC WIRE
In Stock
20 pcs On sales
$87.82
Product Parameter
- Width
- 51.00mm
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Series
- OD172S
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Air Flow
- 300.0 CFM (8.40m³/min)
- Material - Frame
- Aluminum
- Fan Type
- Tubeaxial
- Size / Dimension
- Rectangular/Rounded - 172mm L x 150mm H
- Features
- Auto Restart, PWM Control, Speed Sensor (Tach)
- Ingress Protection
- -
- Approvals
- cURus, TUV
- Current Rating (Amps)
- 0.690A
- Part Status
- Active
- Operating Temperature
- -4 ~ 167°F (-20 ~ 75°C)
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- 22 ~ 53VDC
- RPM
- 3900 RPM
- Static Pressure
- 0.980 in H2O (244.0 Pa)
- Noise
- 57.0 dB
- Voltage - Rated
- 48VDC
