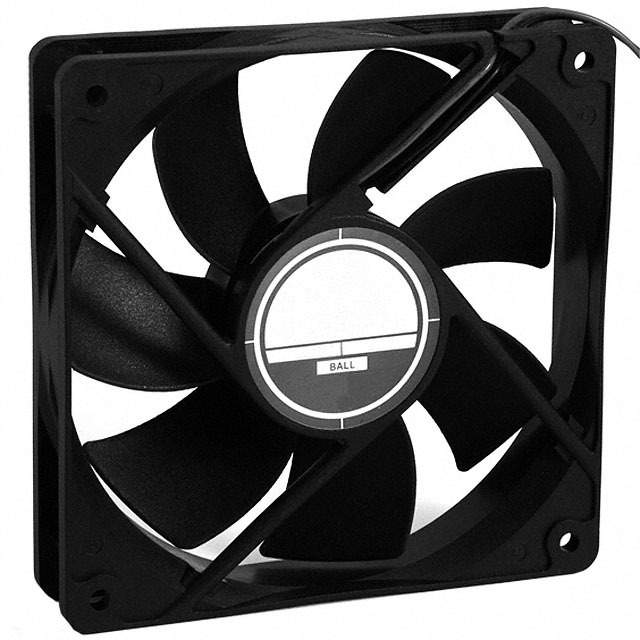

OD1225-12MB
DC Brushless Fans (BLDC)
- Manufacturer No:
- OD1225-12MB
- Manufacture:
- Orion Fans
- Datasheet:
- OD1225-12MB
- Description:
- FAN AXIAL 120X25MM 12VDC WIRE
In Stock
20 pcs On sales
$18.07
Product Parameter
- Features
- -
- Size / Dimension
- Square - 120mm L x 120mm H
- Approvals
- cURus, TUV
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.330A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 2050 RPM
- Power (Watts)
- 4.00W
- Noise
- 38.0 dB
- Voltage Range
- -
- Width
- 25.00mm
- Static Pressure
- 0.120 in H2O (29.9 Pa)
- Series
- OD1225
- Voltage - Rated
- 12VDC
- Weight
- -
- Lifetime @ Temp.
- 65000 Hrs @ 45°C
- Air Flow
- 83.0 CFM (2.32m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
OD1225-12MB Relevant information

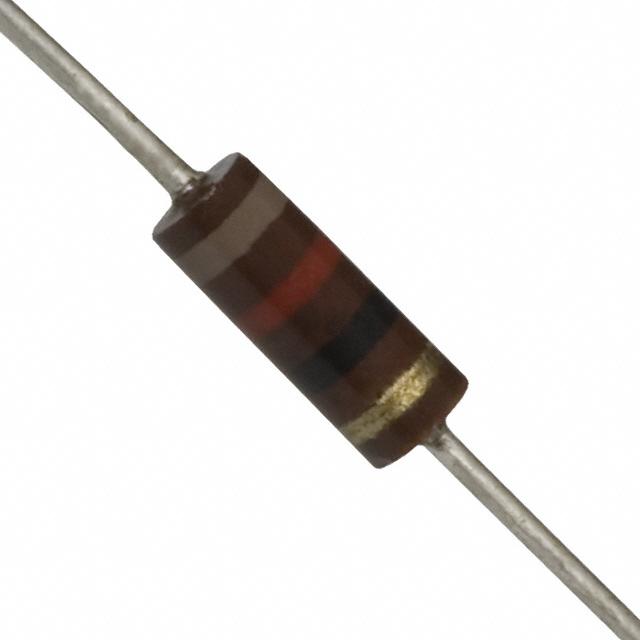

OD120J
RES 12 OHM 1/4W 5% AXIAL

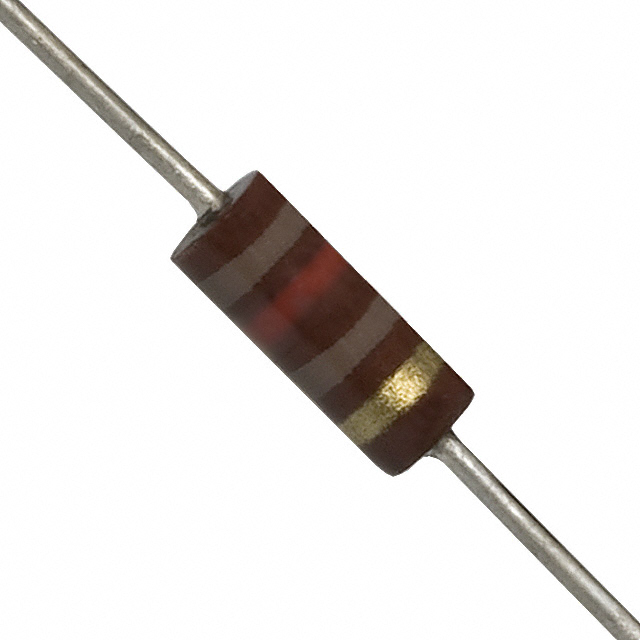

OD120JE
