OA80AP-22-3WB
AC Fans
- Manufacturer No:
- OA80AP-22-3WB
- Manufacture:
- Orion Fans
- Datasheet:
- OA80AP-22-3WB
- Description:
- FAN AXIAL 80X38MM 230VAC WIRE
In Stock
0 pcs On sales
$14.36
Product Parameter
- RPM
- 1950 RPM
- Power (Watts)
- 12.00W
- Noise
- 28.0 dB
- Voltage Range
- 160 ~ 260VAC
- Width
- 38.00mm
- Static Pressure
- 0.070 in H2O (17.4 Pa)
- Series
- OA80
- Voltage - Rated
- 230VAC
- Weight
- -
- Lifetime @ Temp.
- 60000 Hrs @ 40°C
- Air Flow
- 17.0 CFM (0.476m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Material - Frame
- Aluminum
- Features
- -
- Size / Dimension
- Square - 80mm L x 80mm H
- Approvals
- cURus, TUV
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.040A
- Termination
- 2 Wire Leads
- Operating Temperature
- -4 ~ 176°F (-20 ~ 80°C)
- Bearing Type
- Ball
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
OA80AP-22-3WB Relevant information

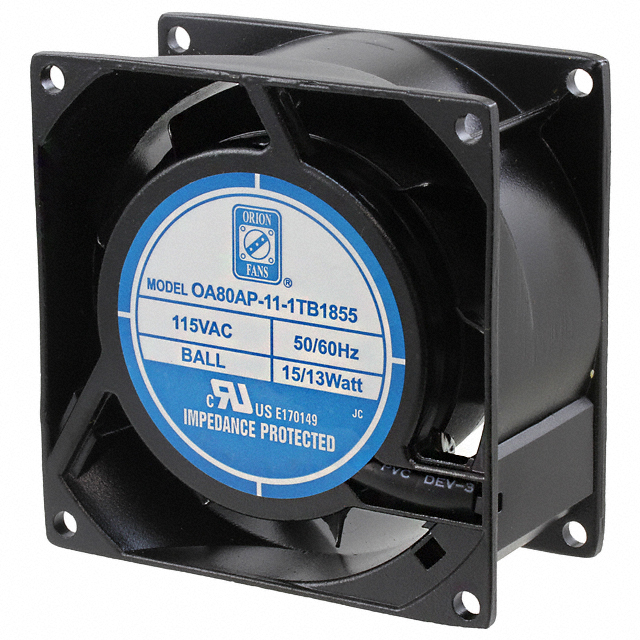

OA80AP-11-1TB1855
FAN AXIAL 80X38MM 115VAC TERM
OA80AP-11-1TS
FAN AXIAL 80X38MM 115VAC TERM
OA80AP-11-1WB
FAN AXIAL 80X38MM 115VAC WIRE

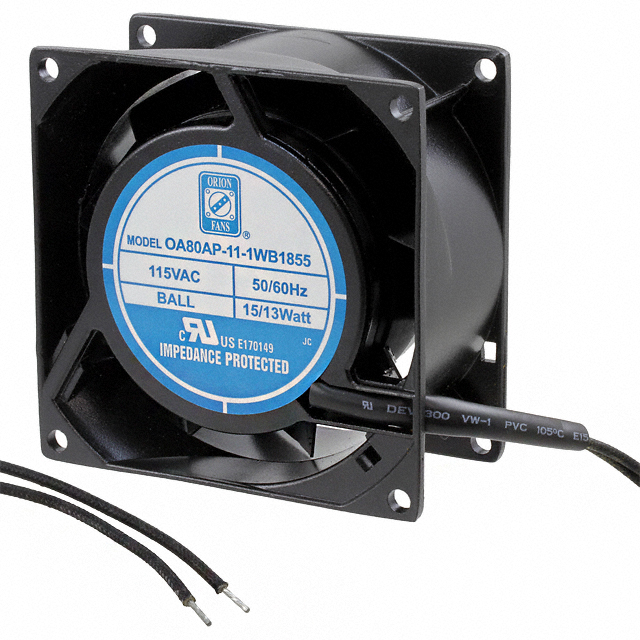

OA80AP-11-1WB1855
