LSS1-04C22-3070-00
LED Lighting - COBs, Engines, Modules, Strips
- Manufacturer No:
- LSS1-04C22-3070-00
- Manufacture:
- Opulent Americas
- Datasheet:
- LSS1-04C22-3070-00
- Description:

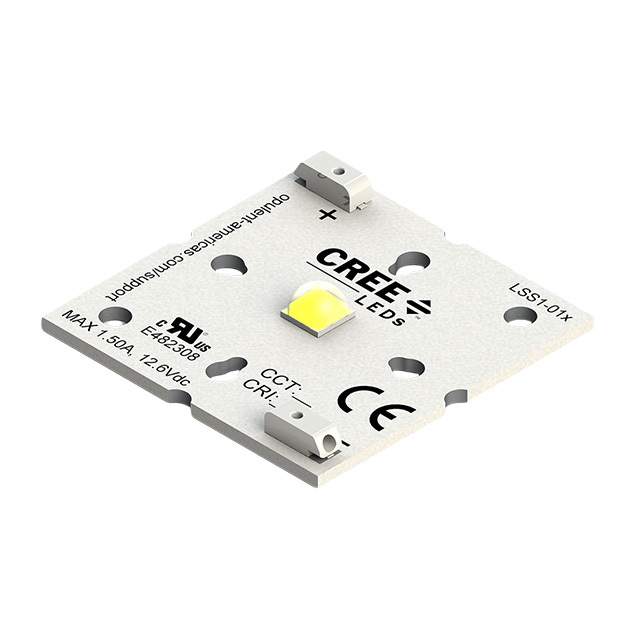

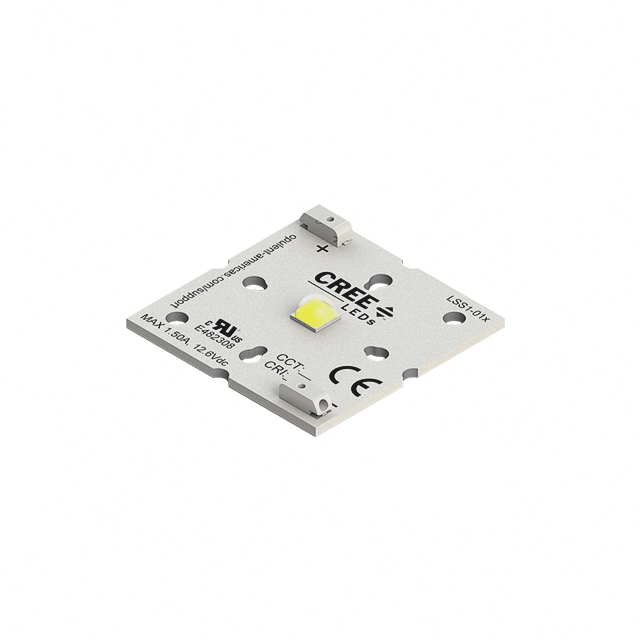

- LED MODULE XHP50.2 3000K SQUARE
In Stock
0 pcs On sales
$17.05
Product Parameter
- Series
- XHP50.2
- Temperature - Test
- 85°C
- CCT (K)
- 3000K 5-Step MacAdam Ellipse
- CRI (Color Rendering Index)
- 70
- Features
- -
- Light Emitting Surface (LES)
- -
- Lens Type
- Domed
- Lumens/Watt @ Current - Test
- 132 lm/W
- Packaging
- Tray
- Voltage - Forward (Vf) (Typ)
- 44.8V
- Wavelength
- -
- Flux @ Current/Temperature - Test
- 4160lm (Typ)
- Part Status
- Active
- Configuration
- Square
- Current - Max
- 1.5A
- Type
- LED Module
- Viewing Angle
- -
- Color
- White, Warm
- Current - Test
- 700mA
- Height
- -
- Size / Dimension
- 70.00mm L x 70.00mm W
