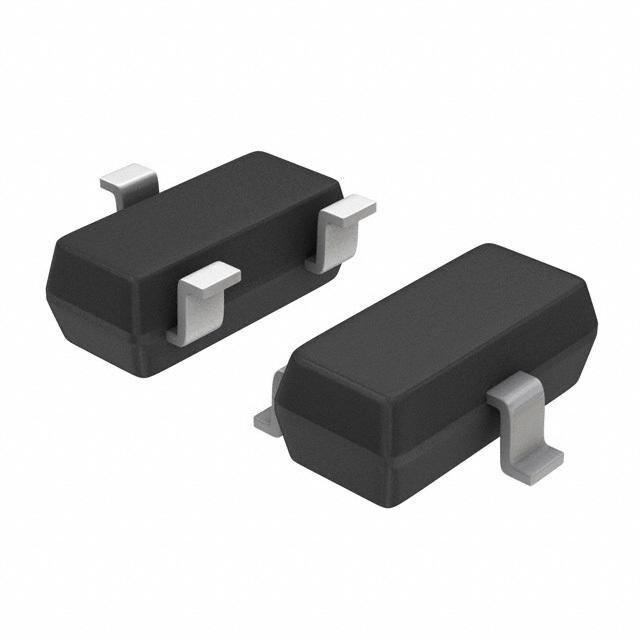

MMUN2133LT1G

Transistors - Bipolar (BJT) - Single, Pre-Biased

Manufacturer No:: MMUN2133LT1G
Manufacture:: ON Semiconductor
Package:: TO-236-3, SC-59, SOT-23-3
Datasheet:: MMUN2133LT1G
Description:: TRANS PREBIAS PNP 246MW SOT23-3

In Stock

26675 pcs On sales

Product Parameter

Power - Max: 246mW

Voltage - Collector Emitter Breakdown (Max): 50V

Mounting Type: Surface Mount

Package / Case: TO-236-3, SC-59, SOT-23-3

Transistor Type: PNP - Pre-Biased

Base Part Number: MMUN21**L

Resistor - Base (R1): 4.7 kOhms

Supplier Device Package: SOT-23-3 (TO-236)

Resistor - Emitter Base (R2): 47 kOhms

Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA

Series: -

Current - Collector (Ic) (Max): 100mA

Packaging: Digi-Reel®

Current - Collector Cutoff (Max): 500nA

Part Status: Active

DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
