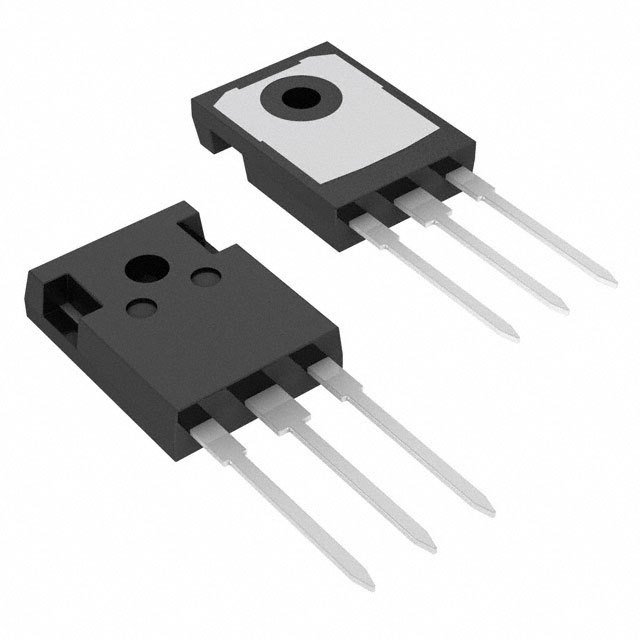

FGH40T65SPD-F155
Transistors - IGBTs - Single
- Manufacturer No:
- FGH40T65SPD-F155
- Manufacture:
- ON Semiconductor
- Package:
- TO-247-3
- Datasheet:
- FGH40T65SPD-F155
- Description:
- IGBT 650V 80A 267W TO-247
In Stock
8827 pcs On sales
$3.2
Product Parameter
- Switching Energy
- 1.16mJ (on), 280µJ (off)
- Td (on/off) @ 25°C
- 16ns/37ns
- Series
- -
- Operating Temperature
- -55°C ~ 175°C (TJ)
- IGBT Type
- Trench Field Stop
- Supplier Device Package
- TO-247
- Packaging
- Tube
- Vce(on) (Max) @ Vge, Ic
- 2.4V @ 15V, 40A
- Input Type
- Standard
- Reverse Recovery Time (trr)
- 34ns
- Gate Charge
- 35nC
- Current - Collector (Ic) (Max)
- 80A
- Part Status
- Active
- Current - Collector Pulsed (Icm)
- 120A
- Power - Max
- 267W
- Voltage - Collector Emitter Breakdown (Max)
- 650V
- Mounting Type
- Through Hole
- Package / Case
- TO-247-3
- Test Condition
- 400V, 40A, 6Ohm, 15V
