FDMF6820A
PMIC - Full, Half-Bridge Drivers
- Manufacturer No:
- FDMF6820A
- Manufacture:
- ON Semiconductor
- Package:

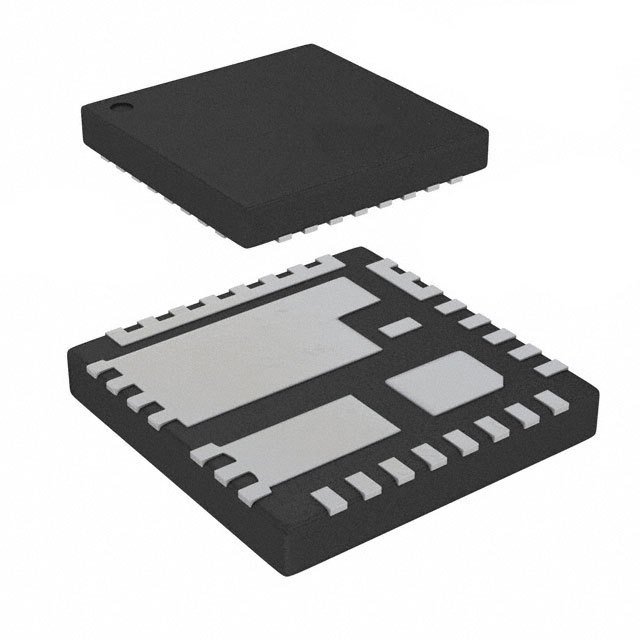

- 40-PowerTFQFN
- Datasheet:
- FDMF6820A
- Description:
- MODULE DRMOS 60A 40-PQFN
In Stock
6177 pcs On sales
$0
Product Parameter
- Package / Case
- 40-PowerTFQFN
- Voltage - Load
- 3V ~ 16V
- Series
- XS™ DrMOS
- Base Part Number
- FDMF6820
- Features
- Bootstrap Circuit, Status Flag
- Fault Protection
- Over Temperature, Shoot-Through, UVLO
- Interface
- PWM
- Voltage - Supply
- 4.5V ~ 5.5V
- Load Type
- Inductive
- Output Configuration
- Half Bridge
- Packaging
- Digi-Reel®
- Current - Peak Output
- -
- Technology
- DrMOS
- Operating Temperature
- -40°C ~ 150°C (TJ)
- Part Status
- Active
- Supplier Device Package
- 40-PQFN (6x6)
- Applications
- Synchronous Buck Converters
- Current - Output / Channel
- 60A
- Rds On (Typ)
- 1Ohm LS, 1Ohm HS
- Mounting Type
- Surface Mount
