4N38SR2M
Optoisolators - Transistor, Photovoltaic Output
- Manufacturer No:
- 4N38SR2M
- Manufacture:
- ON Semiconductor
- Package:
- 6-SMD, Gull Wing
- Datasheet:
- 4N38SR2M
- Description:
- OPTOISO 4.17KV TRANS W/BASE 6SMD
In Stock
859 pcs On sales
$0.73
Product Parameter
- Part Status
- Active
- Current Transfer Ratio (Max)
- -
- Mounting Type
- Surface Mount
- Current Transfer Ratio (Min)
- 20% @ 10mA
- Package / Case
- 6-SMD, Gull Wing
- Voltage - Forward (Vf) (Typ)
- 1.15V
- Base Part Number
- 4N38
- Turn On / Turn Off Time (Typ)
- 5µs, 5µs
- Number of Channels
- 1
- Current - DC Forward (If) (Max)
- 80mA
- Voltage - Isolation
- 4170Vrms
- Vce Saturation (Max)
- 1V
- Operating Temperature
- -40°C ~ 100°C
- Series
- -
- Rise / Fall Time (Typ)
- -
- Packaging
- Cut Tape (CT)
- Voltage - Output (Max)
- 80V
- Input Type
- DC
- Supplier Device Package
- 6-SMD
- Output Type
- Transistor with Base
- Current - Output / Channel
- 100mA
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
4N38SR2M Relevant information
4N38
OPTOISO 5.3KV TRANS W/BASE 6DIP
4N38-V
OPTOISO 5KV TRANS W/BASE 6DIP
4N38-X007
OPTOISO 5KV TRANS W/BASE 6SMD
4N38-X007T
OPTOISO 5KV TRANS W/BASE 6SMD
4N38-X009T
OPTOISO 5KV TRANS W/BASE 6SMD

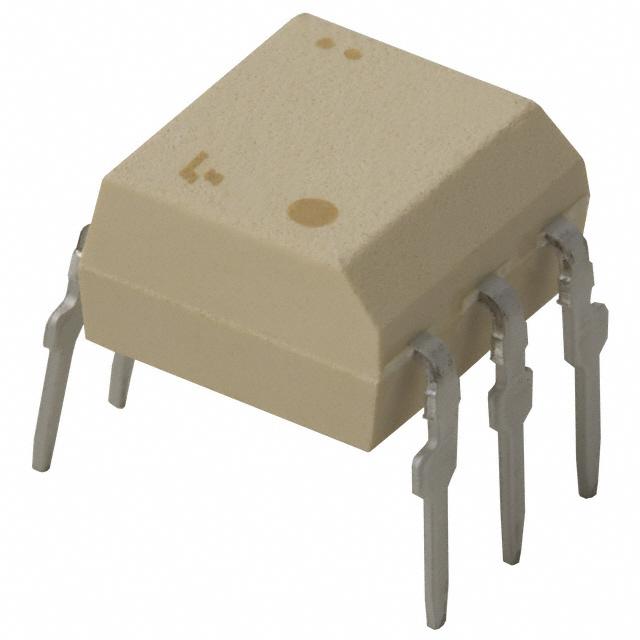

4N38(SHORT,F)
