XM2F-2540-132L
D-Sub Connectors
- Manufacturer No:
- XM2F-2540-132L
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- XM2F-2540-132L
- Description:
- CONN D-SUB RCPT 25POS VERT SLDR
In Stock
116 pcs On sales
$6.81
Product Parameter
- Contact Form
- -
- Dielectric Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Type
- Signal
- Number of Positions
- 25
- Mounting Type
- Through Hole
- Current Rating (Amps)
- 3A
- Connector Type
- Receptacle, Female Sockets
- Operating Temperature
- -25°C ~ 105°C
- Contact Finish
- Gold
- Shell Material, Finish
- Steel, Nickel Plated
- Color
- Black
- Flange Feature
- Mating Side, Female Screwlock (4-40)
- Contact Finish Thickness
- Flash
- Series
- XM2F
- Number of Rows
- 2
- Material Flammability Rating
- UL94 V-0
- Features
- Board Lock, Shielded
- Voltage Rating
- 300V
- Shell Size, Connector Layout
- 3 (DB, B)
- Packaging
- Tray
- Backset Spacing
- -
- Wire Gauge
- -
- Connector Style
- D-Sub
- Part Status
- Active
- Contact Material
- Phosphor Bronze
- Termination
- Solder
- Ingress Protection
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
XM2F-2540-132L Relevant information
XM2F-0910
CONN D-SUB RCPT 9POS VERT SOLDER
XM2F-0910-132
CONN D-SUB RCPT 9POS VERT SOLDER

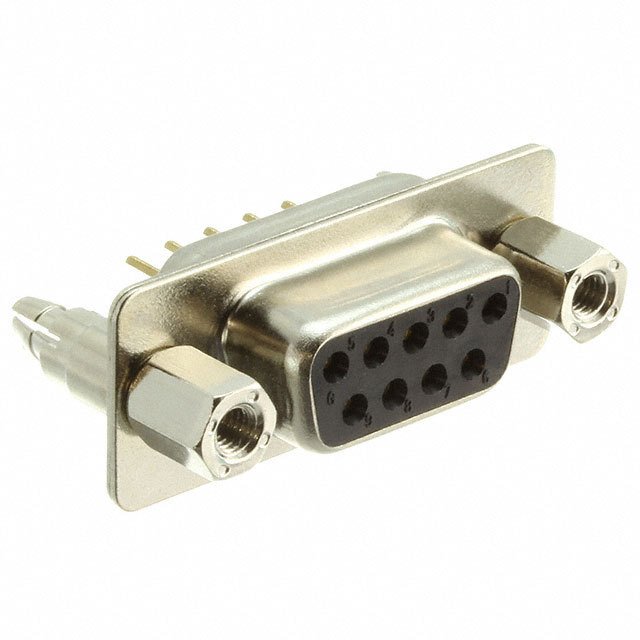

XM2F-0940-112L
CONN D-SUB RCPT 9POS VERT SOLDER
XM2F-0940-132L
CONN D-SUB RCPT 9POS VERT SOLDER

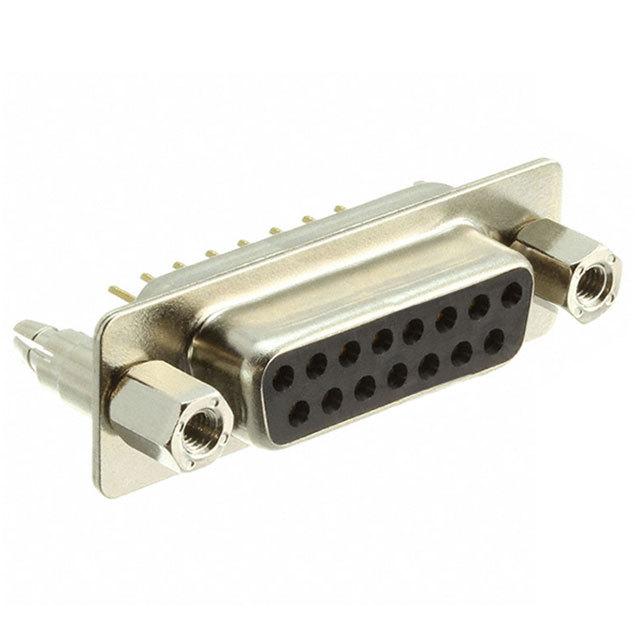

XM2F-1540-112L
