XF2L-1335-1
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- XF2L-1335-1
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- XF2L-1335-1
- Description:
- CONN FPC BOTTOM 13POS 0.50MM R/A
In Stock
0 pcs On sales
$0
Product Parameter
- Termination
- Solder
- FFC, FCB Thickness
- 0.30mm
- Housing Color
- Natural
- Height Above Board
- 0.047" (1.20mm)
- Mating Cycles
- 30
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 13
- Actuator Color
- Brown
- Current Rating (Amps)
- 0.5A
- Cable End Type
- Straight
- Operating Temperature
- -30°C ~ 85°C
- Contact Finish
- Tin Alloy
- Connector/Contact Type
- Contacts, Bottom
- Pitch
- 0.020" (0.50mm)
- Flat Flex Type
- FPC
- Contact Finish Thickness
- 78.7µin (2.00µm)
- Series
- XF2L
- Voltage Rating
- 50V
- Material Flammability Rating
- UL94 V-0
- Features
- Zero Insertion Force (ZIF)
- Locking Feature
- Slide Lock
- Packaging
- Cut Tape (CT)
- Contact Material
- Copper Alloy
- Part Status
- Obsolete
- Actuator Material
- Liquid Crystal Polymer (LCP)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
XF2L-1335-1 Relevant information
XF2L-0425-1
CONN FPC TOP 4POS 0.50MM R/A

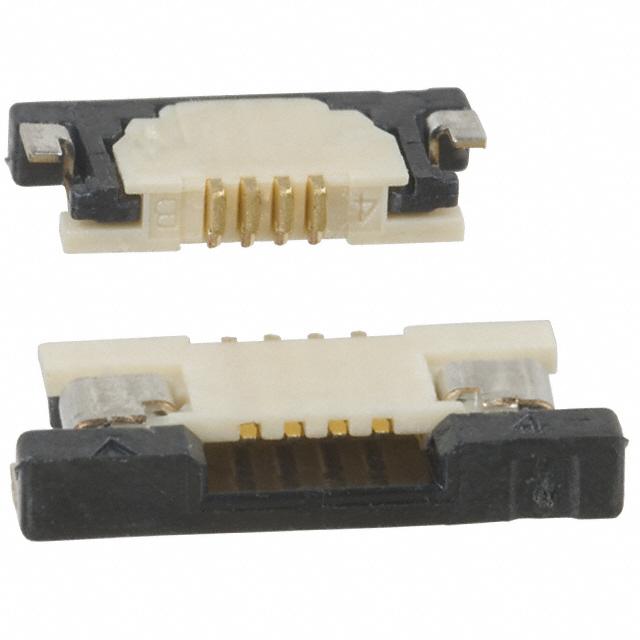

XF2L-0425-1A
CONN FPC TOP 4POS 0.50MM R/A
XF2L-0535-1
CONN FPC BOTTOM 5POS 0.50MM R/A

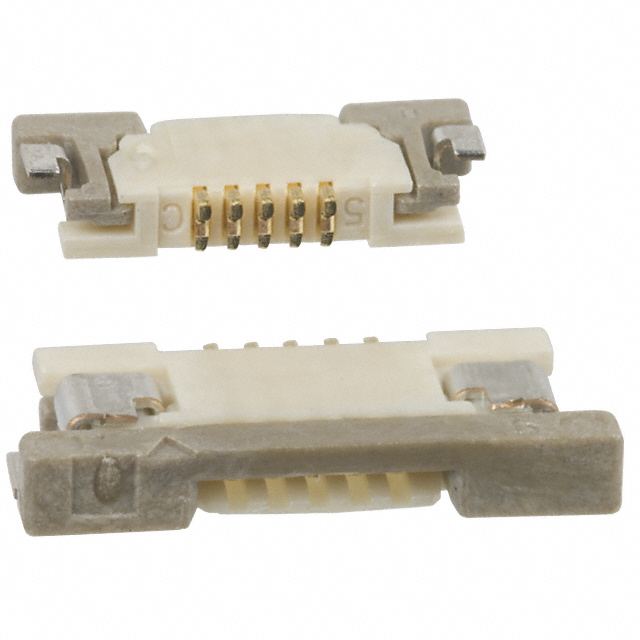

XF2L-0535-1A
CONN FPC BOTTOM 5POS 0.50MM R/A
XF2L-0625-1
CONN FPC TOP 6POS 0.50MM R/A

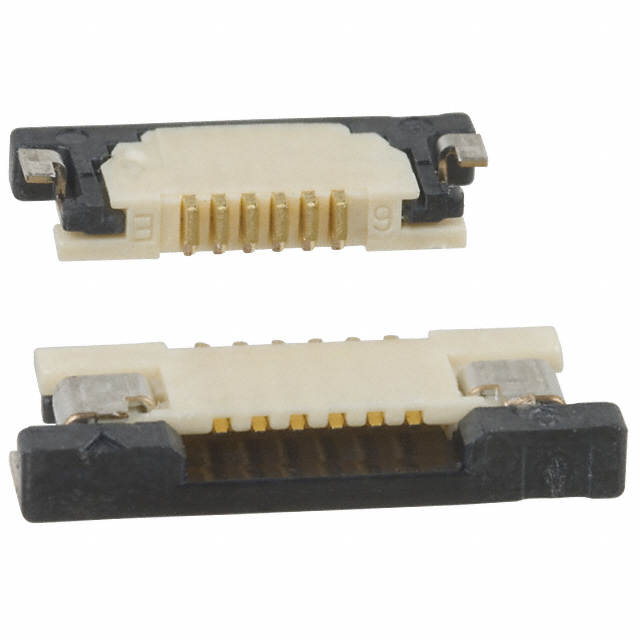

XF2L-0625-1A
