G9EC-1-B DC24
Power Relays, Over 2 Amps
- Manufacturer No:
- G9EC-1-B DC24
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- G9EC-1-B DC24
- Description:
- RELAY GEN PURPOSE SPST 200A 24V
In Stock
77 pcs On sales
$230.24
Product Parameter
- Seal Rating
- Sealed - Fully
- Must Operate Voltage
- 18 VDC
- Coil Current
- 469mA
- Must Release Voltage
- 1.92 VDC
- Coil Voltage
- 24VDC
- Operating Temperature
- -40°C ~ 50°C
- Contact Form
- SPST-NO (1 Form A)
- Contact Rating (Current)
- 200A
- Operate Time
- 50ms
- Release Time
- 30ms
- Series
- G9EC-1
- Mounting Type
- Chassis Mount
- Features
- -
- Coil Insulation
- -
- Coil Type
- Non Latching
- Coil Resistance
- 51.2 Ohms
- Packaging
- Bulk
- Contact Material
- -
- Relay Type
- General Purpose
- Switching Voltage
- 400VDC - Max
- Part Status
- Active
- Termination Style
- Screw Terminal
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
G9EC-1-B DC24 Relevant information
G9EC-1 DC100
RELAY GEN PURPOSE SPST 200A 100V

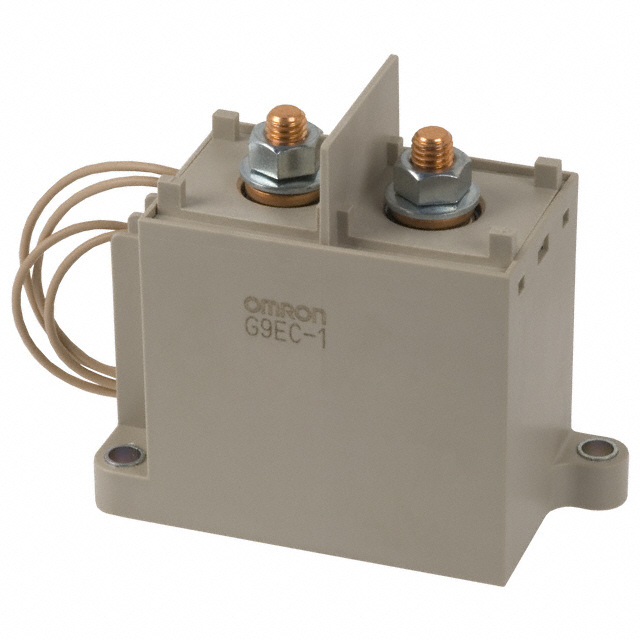

G9EC-1 DC12
RELAY GEN PURPOSE SPST 200A 12V
G9EC-1 DC24
RELAY GEN PURPOSE SPST 200A 24V
G9EC-1 DC48
RELAY GEN PURPOSE SPST 200A 48V
G9EC-1 DC60
RELAY GEN PURPOSE SPST 200A 60V

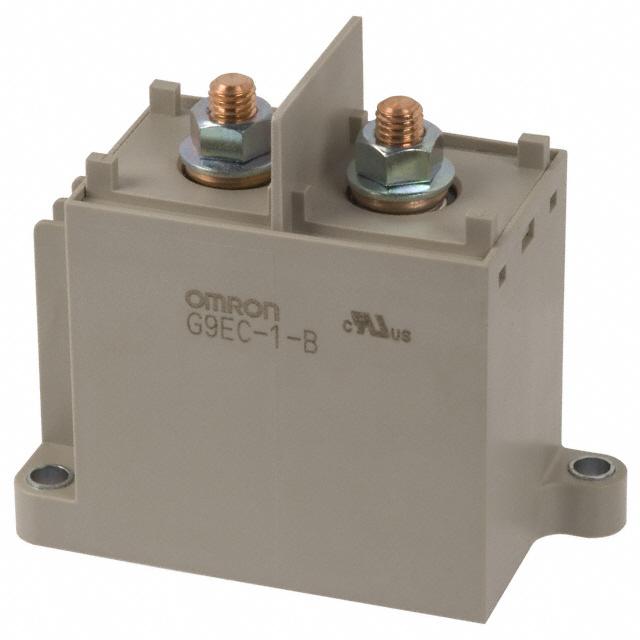

G9EC-1-B DC100
