G7L-1A-BUBJ DC6
Power Relays, Over 2 Amps
- Manufacturer No:
- G7L-1A-BUBJ DC6
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- G7L-1A-BUBJ DC6
- Description:
- RELAY GEN PURPOSE SPST 30A 6V
In Stock
0 pcs On sales
$17.96
Product Parameter
- Coil Type
- Non Latching
- Coil Resistance
- 18.9 Ohms
- Packaging
- Bulk
- Contact Material
- Silver Tin Indium (AgSnIn)
- Relay Type
- General Purpose
- Switching Voltage
- 250VAC - Max
- Part Status
- Active
- Termination Style
- Screw Terminal
- Seal Rating
- -
- Must Operate Voltage
- 4.5 VDC
- Coil Current
- 317mA
- Must Release Voltage
- 0.9 VDC
- Coil Voltage
- 6VDC
- Operating Temperature
- -25°C ~ 60°C
- Contact Form
- SPST-NO (1 Form A)
- Contact Rating (Current)
- 30A
- Operate Time
- 30ms
- Release Time
- 30ms
- Series
- G7L
- Mounting Type
- Chassis Mount
- Features
- Test Button
- Coil Insulation
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
G7L-1A-BUBJ DC6 Relevant information

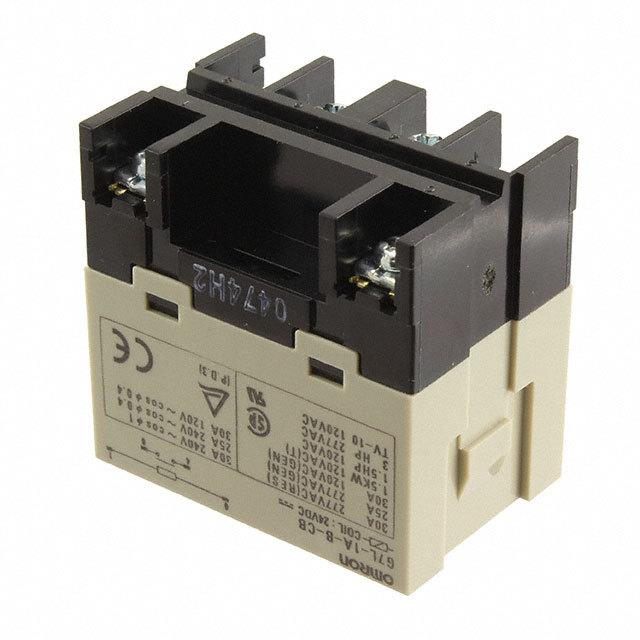

G7L-1A-B DC100
RELAY GEN PURPOSE SPST 30A 100V
G7L-1A-B DC12
RELAY GEN PURPOSE SPST 30A 12V
G7L-1A-B DC48
RELAY GEN PURPOSE SPST 30A 48V
G7L-1A-B DC6
RELAY GEN PURPOSE SPST 30A 6V
G7L-1A-B-CB AC12
RELAY GEN PURPOSE SPST 30A 12V

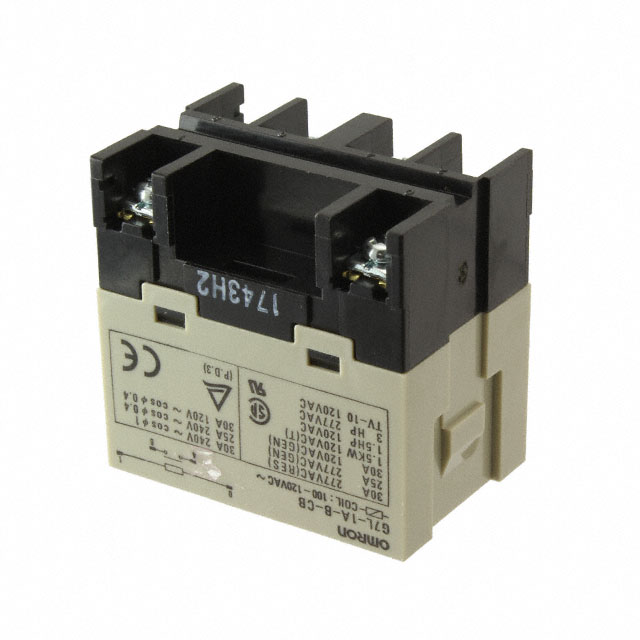

G7L-1A-B-CB-AC100/120
