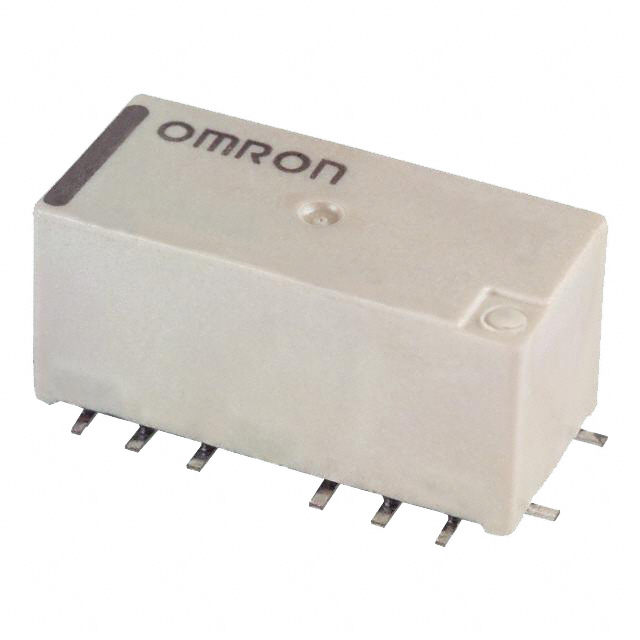

G6W-1P DC6
High Frequency (RF) Relays
- Manufacturer No:
- G6W-1P DC6
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- G6W-1P DC6
- Description:
- RELAY RF SPDT 10MA 6V
In Stock
0 pcs On sales
$0
Product Parameter
- Packaging
- Bulk
- Termination Style
- PC Pin
- Coil Power
- 200mW
- Must Operate Voltage
- 4.8 VDC
- Part Status
- Obsolete
- Must Release Voltage
- 0.6 VDC
- Coil Current
- 33.3mA
- Operating Temperature
- -40°C ~ 70°C
- Coil Voltage
- 6VDC
- Contact Rating (Current)
- 10mA
- Contact Form
- SPDT (1 Form C)
- Operate Time
- 10ms
- Release Time
- 10ms
- Mounting Type
- Through Hole
- Series
- G6W
- Coil Resistance
- 180 Ohms
- Features
- Sealed - Fully
- Contact Material
- Copper (Cu), Gold (Au)
- Coil Type
- Non Latching
- Switching Voltage
- 30VAC, 30VDC - Max
