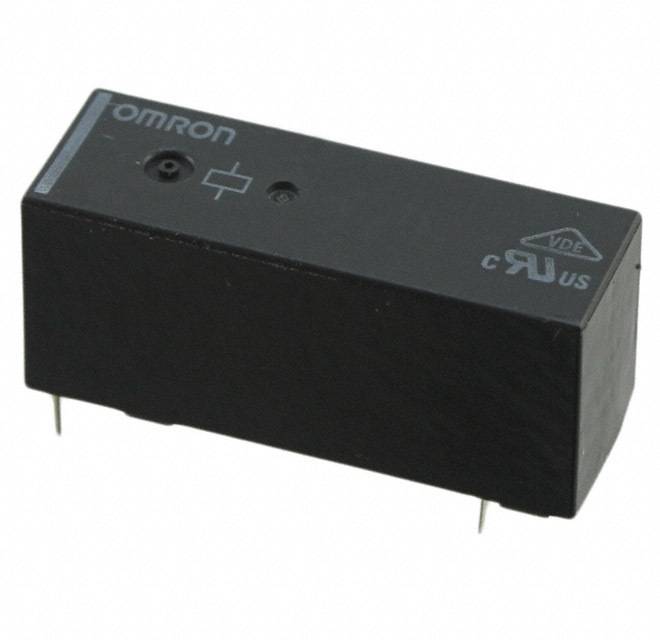

G6RL-1A-ASI-DC12
Power Relays, Over 2 Amps
- Manufacturer No:
- G6RL-1A-ASI-DC12
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- G6RL-1A-ASI-DC12
- Description:
- RELAY GEN PURPOSE SPST 10A 12V
In Stock
309 pcs On sales
$4.3
Product Parameter
- Features
- -
- Coil Insulation
- -
- Coil Type
- Non Latching
- Coil Resistance
- 654 Ohms
- Packaging
- Bulk
- Contact Material
- Silver Tin Indium (AgSnIn)
- Relay Type
- General Purpose
- Switching Voltage
- 250VAC - Nom
- Part Status
- Active
- Termination Style
- PC Pin
- Seal Rating
- Sealed - Flux Protection
- Must Operate Voltage
- 8.4 VDC
- Coil Current
- 18.3mA
- Must Release Voltage
- 1.2 VDC
- Coil Voltage
- 12VDC
- Operating Temperature
- -40°C ~ 85°C
- Contact Form
- SPST-NO (1 Form A)
- Contact Rating (Current)
- 10A
- Operate Time
- 10ms
- Release Time
- 5ms
- Series
- G6RL
- Mounting Type
- Through Hole
