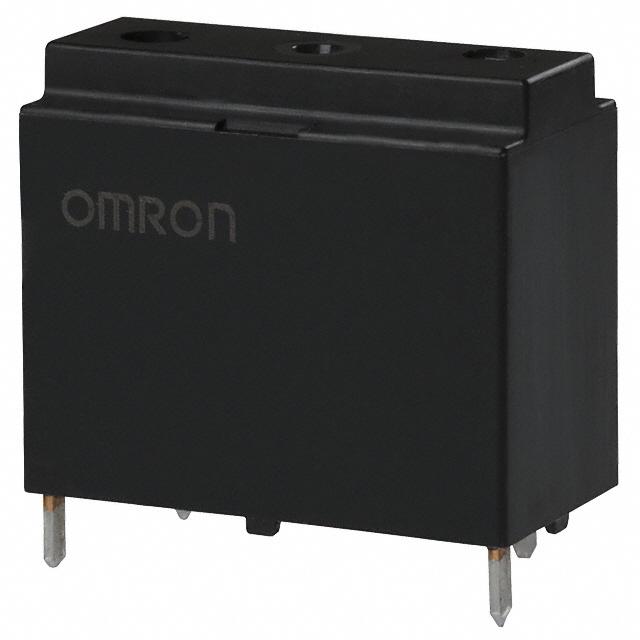

G4A-1A-PE-T130 DC12
Power Relays, Over 2 Amps
- Manufacturer No:
- G4A-1A-PE-T130 DC12
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- G4A-1A-PE-T130 DC12
- Description:
- RELAY GEN PURPOSE SPST 20A 12V
In Stock
0 pcs On sales
$8.03
Product Parameter
- Coil Type
- Non Latching
- Coil Resistance
- 160 Ohms
- Packaging
- Bulk
- Contact Material
- -
- Relay Type
- General Purpose
- Switching Voltage
- 250VAC - Max
- Part Status
- Active
- Termination Style
- PC Pin
- Seal Rating
- Sealed - Flux Protection
- Must Operate Voltage
- 8.4 VDC
- Coil Current
- 75.0mA
- Must Release Voltage
- 1.2 VDC
- Coil Voltage
- 12VDC
- Operating Temperature
- -20°C ~ 60°C
- Contact Form
- SPST-NO (1 Form A)
- Contact Rating (Current)
- 20A
- Operate Time
- 20ms
- Release Time
- 10ms
- Series
- G4A
- Mounting Type
- Through Hole
- Features
- -
- Coil Insulation
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
G4A-1A-PE-T130 DC12 Relevant information

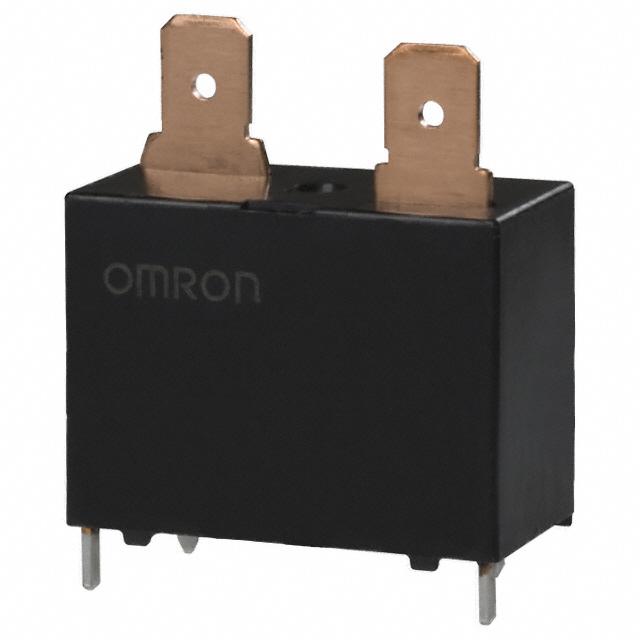

G4A-1A-E DC12
