G2R-2-DC12
Power Relays, Over 2 Amps
- Manufacturer No:
- G2R-2-DC12
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- G2R-2-DC12
- Description:
- RELAY GEN PURPOSE DPDT 5A 12V
In Stock
8262 pcs On sales
$5.88
Product Parameter
- Series
- G2R
- Mounting Type
- Through Hole
- Features
- -
- Coil Insulation
- -
- Coil Type
- Non Latching
- Coil Resistance
- 275 Ohms
- Packaging
- Tray
- Contact Material
- Silver Alloy
- Relay Type
- General Purpose
- Switching Voltage
- 380VAC, 125VDC - Max
- Part Status
- Active
- Termination Style
- PC Pin
- Seal Rating
- Sealed - Flux Protection
- Must Operate Voltage
- 8.4 VDC
- Coil Current
- 43.6mA
- Must Release Voltage
- 1.8 VDC
- Coil Voltage
- 12VDC
- Operating Temperature
- -40°C ~ 70°C
- Contact Form
- DPDT (2 Form C)
- Contact Rating (Current)
- 5A
- Operate Time
- 15ms
- Release Time
- 5ms
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
G2R-2-DC12 Relevant information

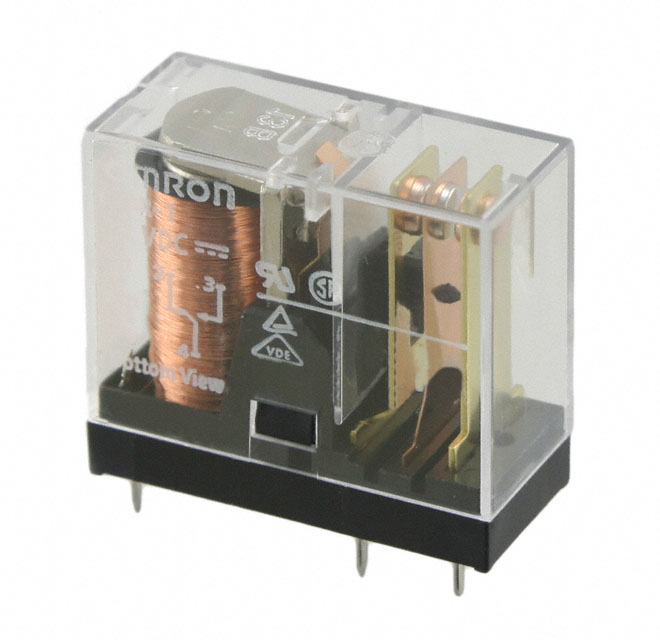

G2R-1 AC200/(220)
