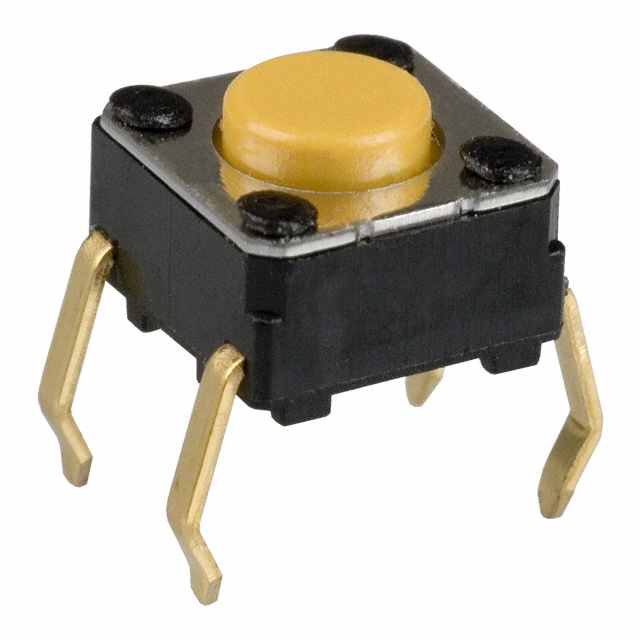

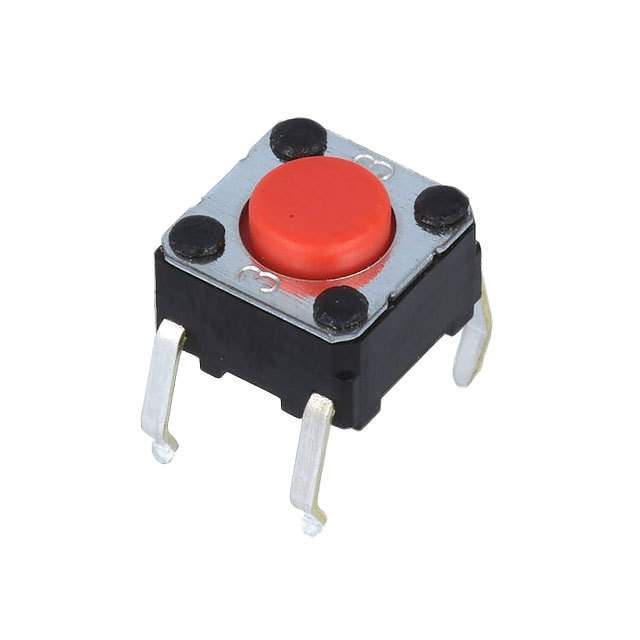

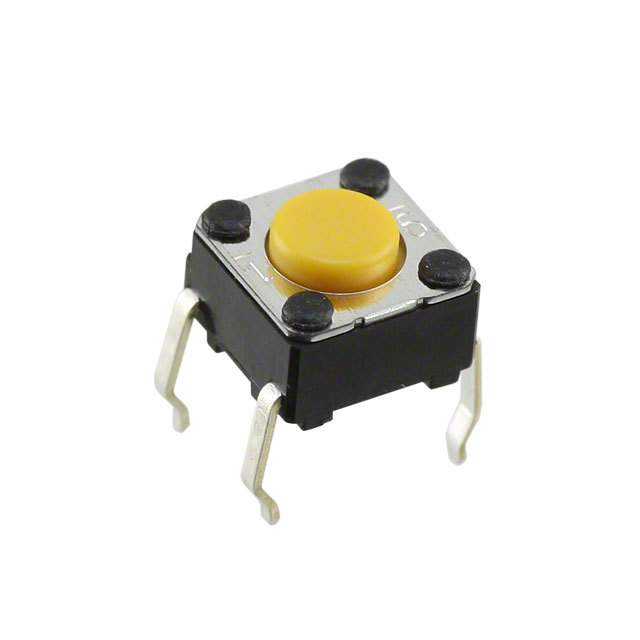

B3F-1070
Tactile Switches
- Manufacturer No:
- B3F-1070
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- B3F-1070
- Description:
- SWITCH TACTILE SPST-NO 0.05A 24V
In Stock
3798 pcs On sales
$0.38
Product Parameter
- Part Status
- Active
- Operating Temperature
- -25°C ~ 70°C
- Illumination
- Non-Illuminated
- Contact Rating @ Voltage
- 0.05A @ 24VDC
- Actuator Type
- Standard
- Illumination Type, Color
- -
- Mounting Type
- Through Hole
- Actuator Length, Right Angle
- -
- Switch Travel
- 0.25mm
- Illumination Voltage (Nominal)
- -
- Mechanical Life
- 500,000 Cycles
- Actuator Height off PCB, Vertical
- 9.50mm
- Operating Force
- 100gf
- Series
- B3F
- Switch Function
- Off-Mom
- Circuit
- SPST-NO
- Actuator Material
- -
- Outline
- 6.00mm x 6.00mm
- Termination Style
- PC Pin
- Features
- -
- Ingress Protection
- -
- Packaging
- Bulk
- Actuator Orientation
- Top Actuated
