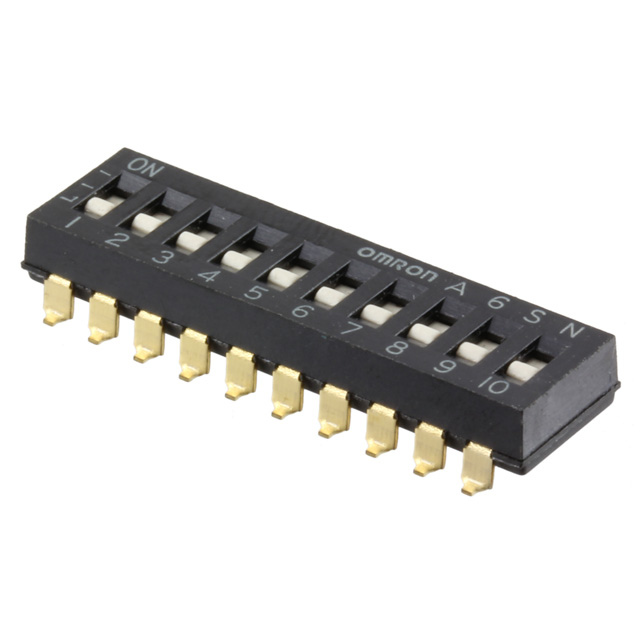

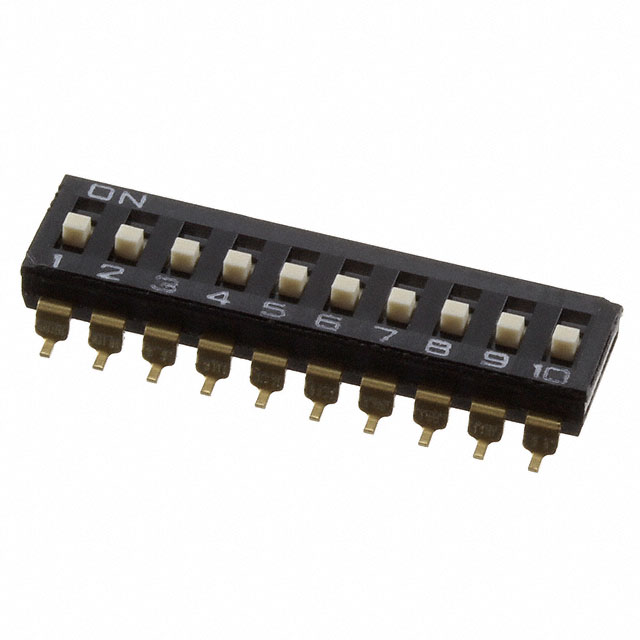

A6S-8102-PH
DIP Switches
- Manufacturer No:
- A6S-8102-PH
- Manufacture:
- Omron Electronics Inc-EMC Div
- Datasheet:
- A6S-8102-PH
- Description:
- SWITCH SLIDE DIP SPST 25MA 24V
In Stock
5357 pcs On sales
$0
Product Parameter
- Mounting Type
- Surface Mount
- Actuator Level
- Flush, Recessed
- Pitch
- 0.100" (2.54mm), Full
- Contact Finish
- Gold
- Length
- 0.837" (21.26mm)
- Voltage Rating
- 24VDC
- Series
- A6S-H
- Electrical Life
- 1,000 Cycles
- Circuit
- SPST
- Mechanical Life
- 1,000 Cycles
- Features
- Tape Seal
- Contact Material
- -
- Washable
- Yes
- Termination Style
- Gull Wing
- Packaging
- Digi-Reel®
- Height Above Board
- 0.146" (3.70mm)
- Part Status
- Active
- Number of Positions
- 8
- Actuator Type
- Slide (Standard)
- Current Rating (Amps)
- 25mA
- Body Material
- -
- Operating Temperature
- -20°C ~ 70°C
