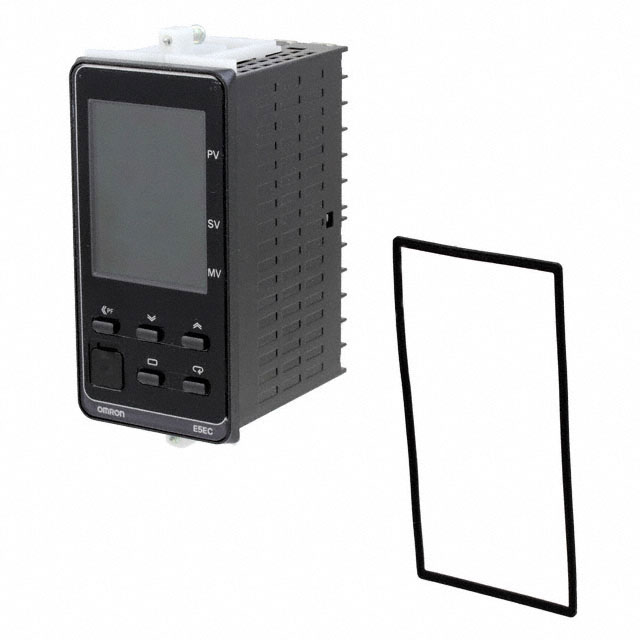

E5EC-QX4ABM-000
Controllers - Process, Temperature
- Manufacturer No:
- E5EC-QX4ABM-000
- Manufacture:
- Omron Automation and Safety
- Datasheet:
- E5EC-QX4ABM-000
- Description:
- CONTROL TEMP/PROCESS 100-240V
In Stock
3 pcs On sales
$344.93
Product Parameter
- Input Range
- -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
- Display Characters - Height
- 0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm)
- Output Type
- Relay (4), Voltage (External SSR)
- Number of Characters Per Row
- 4, 4, 4
- Part Status
- Active
- Display Type
- LCD - Tri Color Characters, Backlight
- Mounting Type
- Panel Mount
- Communications
- -
- Control Method
- On/Off, Proportional (PID)
- Voltage - Supply
- 100 ~ 240VAC
- Type
- Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
- Termination Style
- Spring Terminal
- Series
- E5EC
- Ingress Protection
- IP66 - Dust Tight, Water Resistant
- Weight
- 0.463 lb (210.01 g)
- Operating Temperature
- -10°C ~ 55°C
- Features
- -
- Panel Cutout Dimensions
- Rectangular - 92.00mm x 45.00mm
