A22K-2M-11

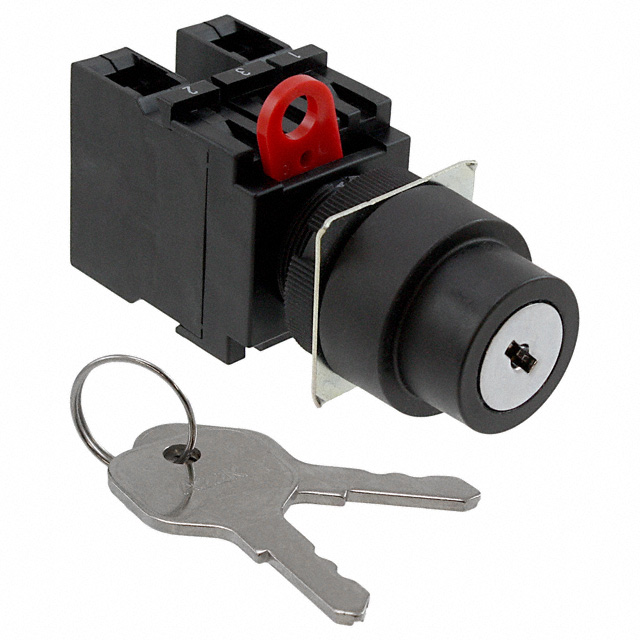

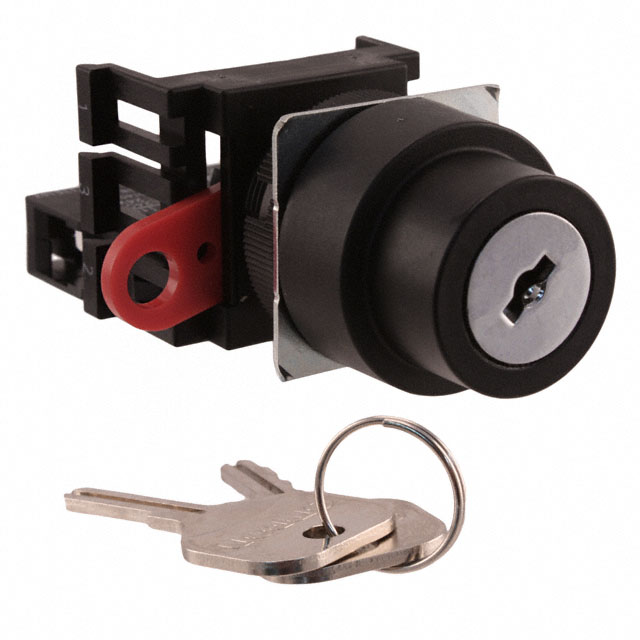

Keylock Switches

Manufacturer No:
A22K-2M-11
Manufacture:
Omron Automation and Safety
Datasheet:
A22K-2M-11
Description:
SWITCH KEYLCK 2POS DPST 10A 110V

In Stock

0 pcs On sales

$49.09

Product Parameter

Contact Timing
Not Specified
Panel Cutout Dimensions
Circular - 22.30mm Dia
Electrical Life
500,000 Cycles
Mechanical Life
500,000 Cycles
Switch Function
On-Off, Off-On
Series
A22K
Contact Material
-
Circuit
DPST-NO/NC
Termination Style
Screw Terminal
Features
IP65, Oil-Resistant
Depth Behind Flange
54.70mm
Part Status
Active
Number of Positions
2
Actuator Type
Flat Key
Voltage Rating - AC
110V
Mounting Type
Panel Mount
Current Rating (Amps)
10A (AC)
Angle of Throw
90°
Operating Temperature
-20°C ~ 70°C
Contact Finish
-
Key Removable Positions
All
