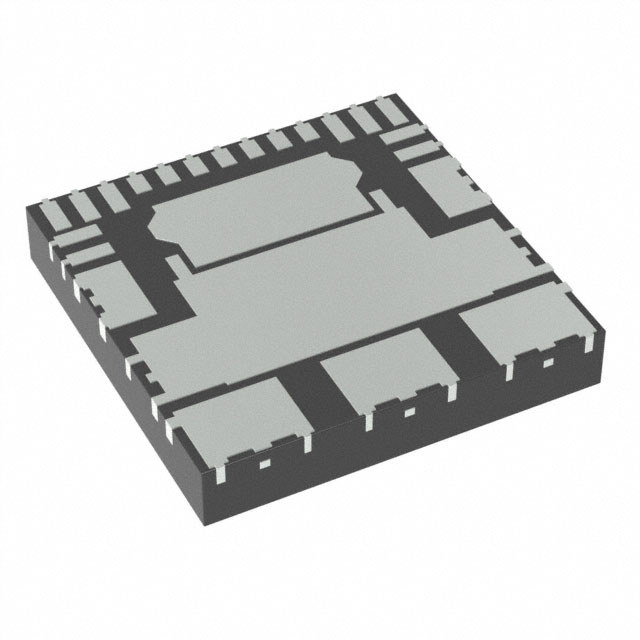

MC06XSD200FKR2
PMIC - Power Distribution Switches, Load Drivers
- Manufacturer No:
- MC06XSD200FKR2
- Manufacture:
- NXP USA Inc.
- Package:
- 23-PowerQFN
- Datasheet:
- MC06XSD200FKR2
- Description:
- IC SWITCH HIGH SIDE 23PQFN
In Stock
0 pcs On sales
$0
Product Parameter
- Part Status
- Obsolete
- Supplier Device Package
- 23-PQFN (12x12)
- Switch Type
- General Purpose
- Voltage - Supply (Vcc/Vdd)
- 3V ~ 5.5V
- Rds On (Typ)
- 6mOhm
- Package / Case
- 23-PowerQFN
- Voltage - Load
- 8V ~ 36V
- Base Part Number
- MC06XSD200
- Series
- -
- Fault Protection
- Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
- Features
- Internal PWM, Slew Rate Controlled
- Number of Outputs
- 2
- Interface
- SPI
- Output Configuration
- High Side
- Packaging
- Tape & Reel (TR)
- Ratio - Input:Output
- 1:2
- Input Type
- -
- Operating Temperature
- -40°C ~ 150°C (TJ)
- Output Type
- N-Channel
- Current - Output (Max)
- 9A
