JN5164/001,515
RF Transceiver ICs
- Manufacturer No:
- JN5164/001,515
- Manufacture:
- NXP USA Inc.
- Package:
- 40-VFQFN Exposed Pad
- Datasheet:
- JN5164/001,515
- Description:
- IC RF TXRX+MCU 802.15.4 40VFQFN
In Stock
0 pcs On sales
$2.26
Product Parameter
- Frequency
- 2.4GHz
- RF Family/Standard
- 802.15.4
- Packaging
- Tape & Reel (TR)
- Current - Receiving
- 17mA
- Modulation
- O-QPSK
- Operating Temperature
- -40°C ~ 125°C
- Memory Size
- 160kB Flash, 4kB EEPROM, 32kB RAM
- Current - Transmitting
- 15.3mA
- Part Status
- Active
- Supplier Device Package
- 40-HVQFN (6x6)
- Sensitivity
- -96dBm
- Mounting Type
- Surface Mount
- Package / Case
- 40-VFQFN Exposed Pad
- GPIO
- 20
- Power - Output
- 2.5dBm
- Type
- TxRx + MCU
- Data Rate (Max)
- 1Mbps
- Series
- -
- Voltage - Supply
- 2V ~ 3.6V
- Protocol
- ZigbeePRO®
- Serial Interfaces
- I²C, JTAG, SPI, UART
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
JN5164/001,515 Relevant information
JN512
JUMPER BARRIER BLK 12POS

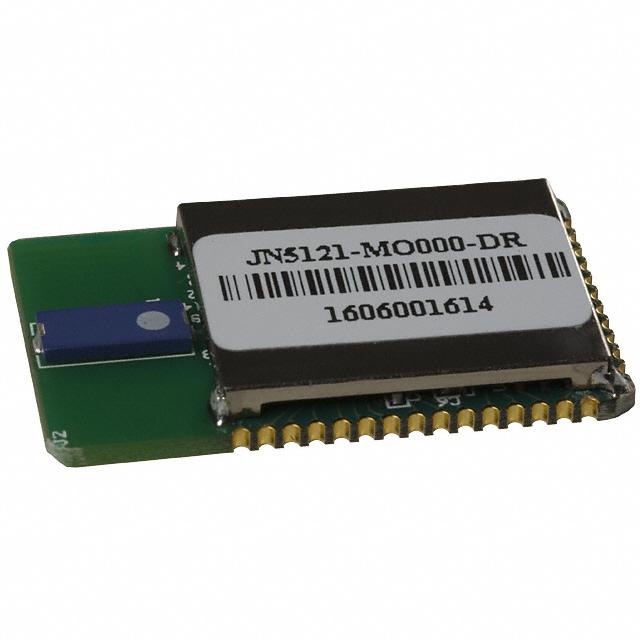

JN5121-000-M00T
RF TXRX MOD 802.15.4 TRACE ANT

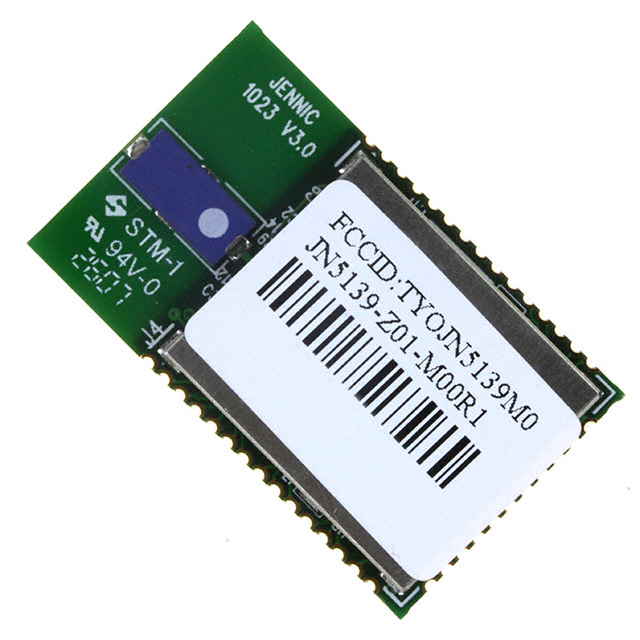

JN5139-001-M/00R1T
RF TXRX MOD 802.15.4 TRACE ANT

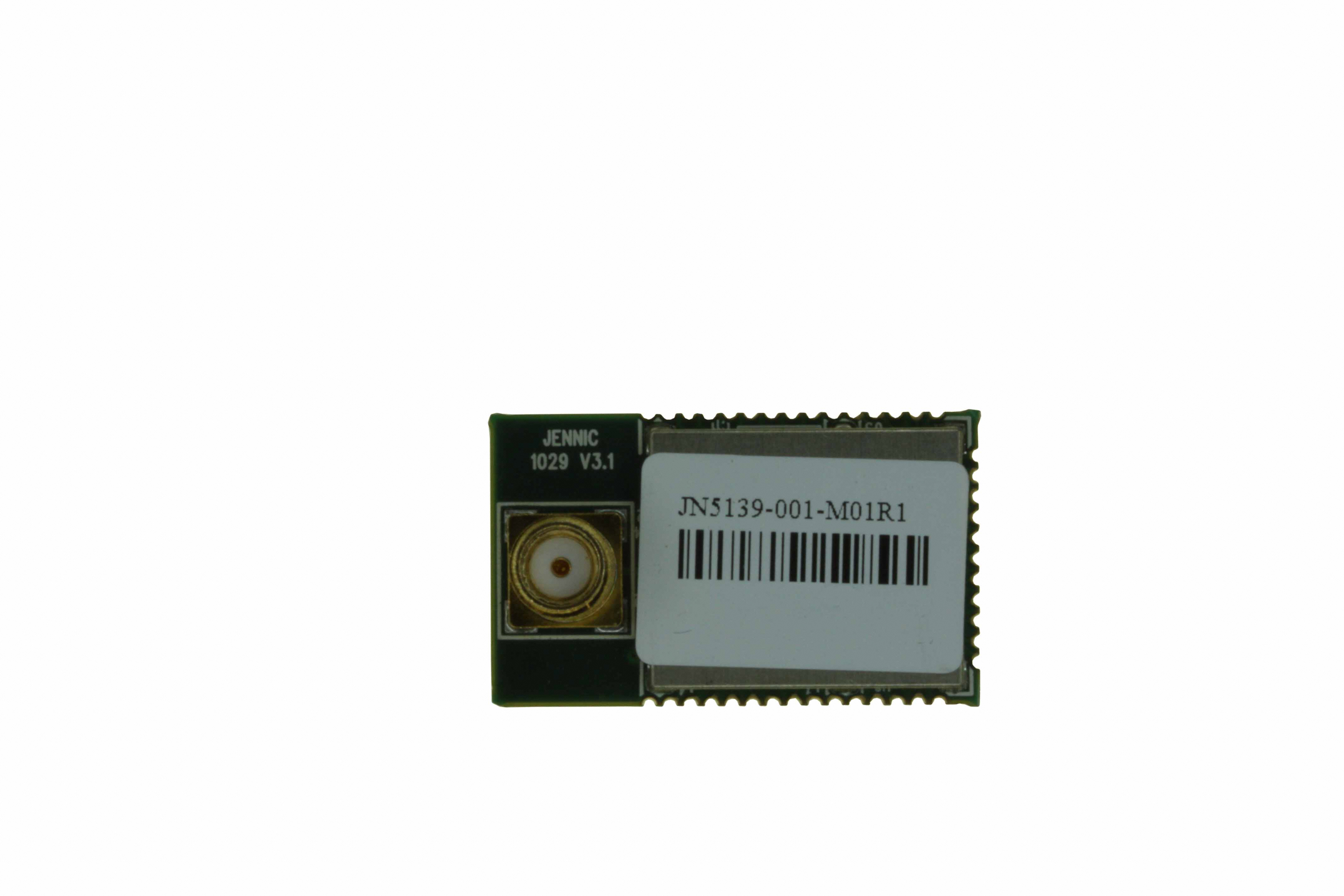

JN5139-001-M/01R1V
