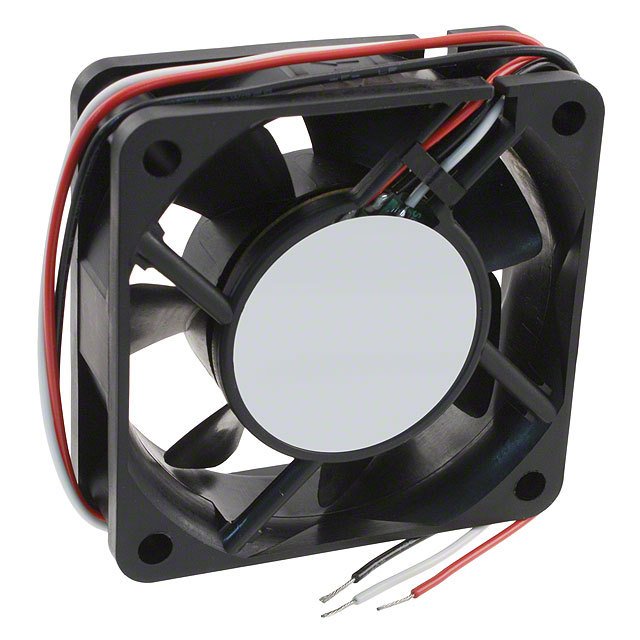

2408NL-05W-B10-L00
DC Brushless Fans (BLDC)
- Manufacturer No:
- 2408NL-05W-B10-L00
- Manufacture:
- NMB Technologies Corporation
- Datasheet:
- 2408NL-05W-B10-L00
- Description:
- FAN AXIAL 60X20MM 24VDC WIRE
In Stock
0 pcs On sales
$9.71
Product Parameter
- Part Status
- Active
- Current Rating (Amps)
- 0.040A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 2800 RPM
- Power (Watts)
- 960mW
- Noise
- 22.5 dB
- Voltage Range
- 15 ~ 27.6VDC
- Width
- 20.00mm
- Static Pressure
- 0.067 in H2O (16.7 Pa)
- Series
- 2408NL
- Voltage - Rated
- 24VDC
- Weight
- 0.187 lb (84.82 g)
- Lifetime @ Temp.
- -
- Air Flow
- 10.9 CFM (0.305m³/min)
- Material - Blade
- Plastic
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- -
- Size / Dimension
- Square - 60mm L x 60mm H
- Approvals
- CE, CSA, UL, VDE
- Ingress Protection
- -
