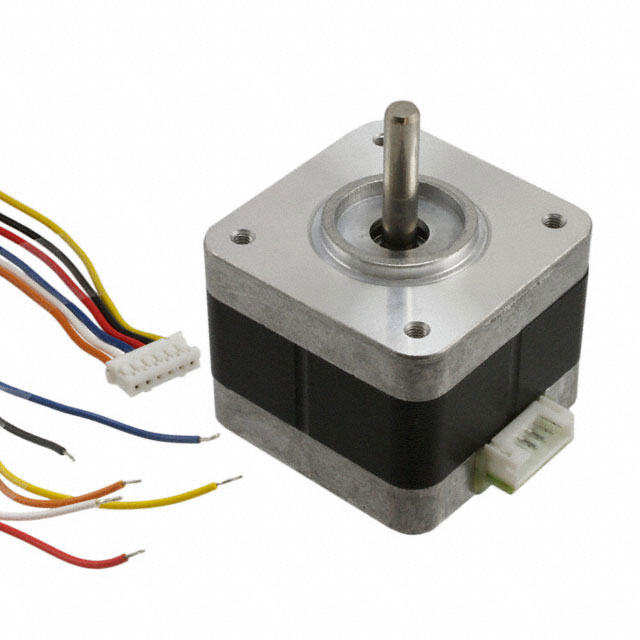

17PM-K858-00VS
Stepper Motors
- Manufacturer No:
- 17PM-K858-00VS
- Manufacture:
- NMB Technologies Corporation
- Datasheet:
- 17PM-K858-00VS
- Description:
- STEP MOTOR HYBRID UNIPOLAR 24V
In Stock
14 pcs On sales
$50.06
Product Parameter
- Type
- Hybrid
- Voltage - Rated
- 24VDC
- Series
- 17PM
- Diameter - Shaft
- 0.197" (5.00mm)
- Weight
- 0.662 lb (300.28 g)
- Size / Dimension
- Square - 1.654" x 1.654" (42.00mm x 42.00mm)
- Accuracy
- ±5%
- Termination Style
- Wire Leads
- Features
- Flatted Shaft
- Steps per Revolution
- 200
- Approvals
- -
- Current Rating (Amps)
- 750mA
- Coil Type
- Unipolar
- Mounting Hole Spacing
- 1.220" (31.00mm)
- Step Angle
- 1.8°
- Operating Temperature
- -10°C ~ 50°C
- Part Status
- Active
- Length - Shaft and Bearing
- 0.984" (25.00mm)
- Rotor Inertia
- 55gcm²
- Torque - Holding (oz-in / mNm)
- 38.24 / 270
- Coil Resistance
- 7.4 Ohms
- NEMA Frame Size
- 17
