YB26KKW01-2CF12-JB
Pushbutton Switches
- Manufacturer No:
- YB26KKW01-2CF12-JB
- Manufacture:
- NKK Switches
- Datasheet:
- YB26KKW01-2CF12-JB
- Description:
- SWITCH PUSHBUTTON DPDT 3A 125V
In Stock
54 pcs On sales
$20.2
Product Parameter
- Series
- YB
- Voltage Rating - AC
- 125V
- Circuit
- DPDT
- Voltage Rating - DC
- 30V
- Features
- Epoxy Sealed Terminals
- Color - Actuator/Cap
- Clear (White Filter/Diffuser)
- Packaging
- Bulk
- Current Rating (Amps)
- 3A (AC/DC)
- Part Status
- Active
- Operating Temperature
- -25°C ~ 50°C
- Actuator Type
- Square, Button
- Panel Cutout Dimensions
- Circular - 16.00mm Dia
- Mounting Type
- Panel Mount, Snap-In
- Illumination Type, Color
- LED, Red/Green
- Electrical Life
- 100,000 Cycles
- Illumination Voltage (Nominal)
- 12 VDC
- Mechanical Life
- 200,000 Cycles
- Switch Function
- On-On
- Termination Style
- Solder, Quick Connect - 0.110" (2.8mm)
- Type
- Standard, Illuminated
- Ingress Protection
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
YB26KKW01-2CF12-JB Relevant information

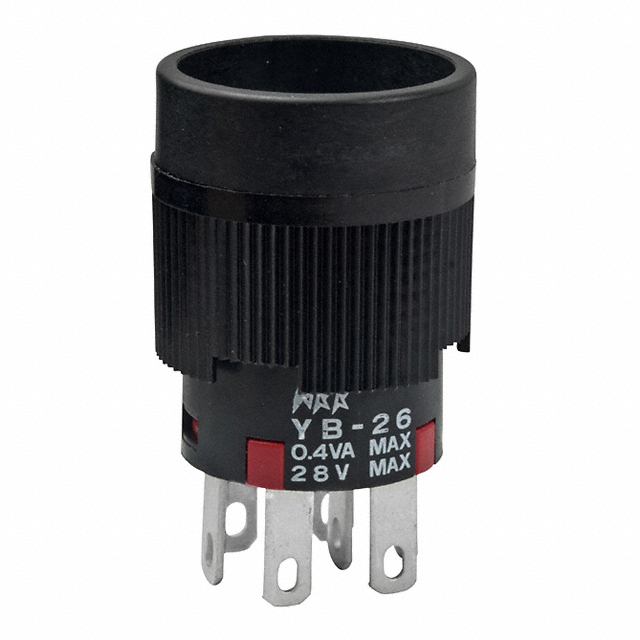

YB26CKG01
SWITCH PUSH DPDT 0.4VA 28V
YB26CKG01-2CF12-JB
SWITCH PUSHBUTTON DPDT 0.4VA 28V

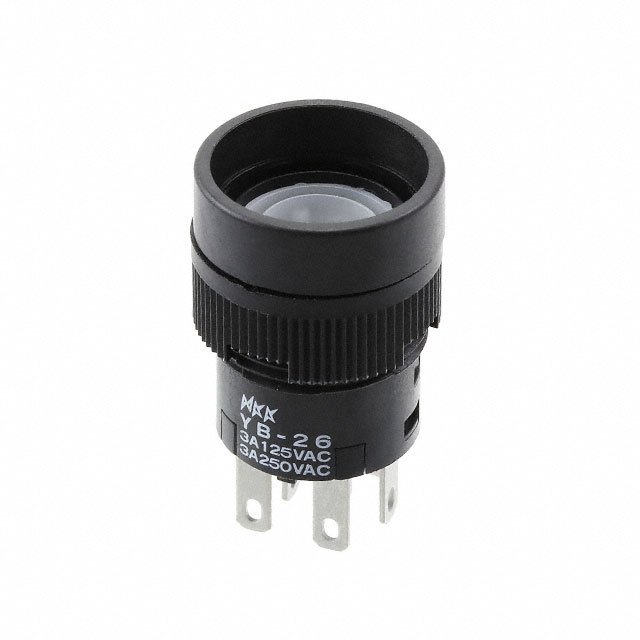

YB26CKW01
