YB226CWCPW01-N-P
Pushbutton Switches
- Manufacturer No:
- YB226CWCPW01-N-P
- Manufacture:
- NKK Switches
- Datasheet:
- YB226CWCPW01-N-P
- Description:
- SWITCH PUSHBUTTON DPDT 3A 125V
In Stock
12 pcs On sales
$25.52
Product Parameter
- Features
- Epoxy Sealed Terminals
- Color - Actuator/Cap
- Brushed Chrome
- Packaging
- Bulk
- Current Rating (Amps)
- 3A (AC/DC)
- Part Status
- Active
- Operating Temperature
- -25°C ~ 70°C
- Actuator Type
- Round, Button, Flush
- Panel Cutout Dimensions
- Circular - 22.00mm Dia
- Mounting Type
- Panel Mount, Front
- Illumination Type, Color
- -
- Electrical Life
- 100,000 Cycles
- Illumination Voltage (Nominal)
- -
- Mechanical Life
- 200,000 Cycles
- Switch Function
- On-On
- Termination Style
- Solder, Quick Connect - 0.110" (2.8mm)
- Type
- Standard
- Ingress Protection
- IP65 - Dust Tight, Water Resistant
- Series
- YB2
- Voltage Rating - AC
- 125V
- Circuit
- DPDT
- Voltage Rating - DC
- 30V
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
YB226CWCPW01-N-P Relevant information
YB225CWCKG01
SWITCH PUSHBUTTON DPDT 0.4VA 28V
YB225CWCKG01-N-CB
SWITCH PUSHBUTTON DPDT 0.4VA 28V
YB225CWCKG01-N-JB
SWITCH PUSHBUTTON DPDT 0.4VA 28V
YB225CWCKG01/CUL
SWITCH PUSHBUTTON DPDT 0.4VA 28V

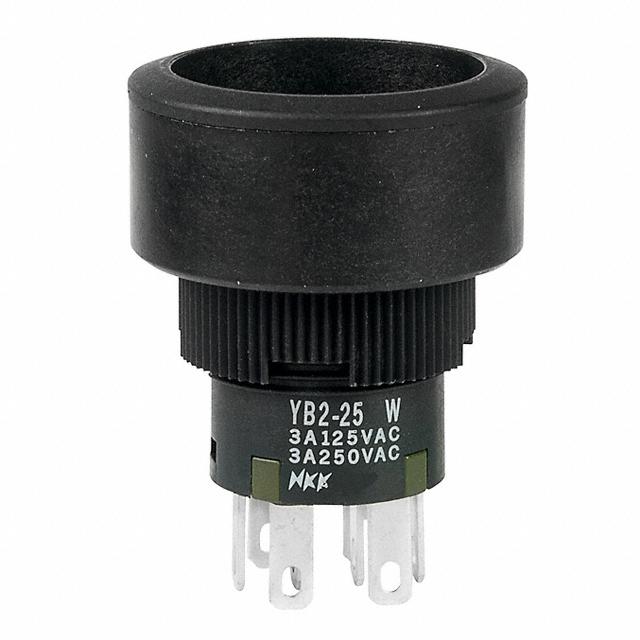

YB225CWCKW01
SWITCH PUSHBUTTON DPDT 3A 125V

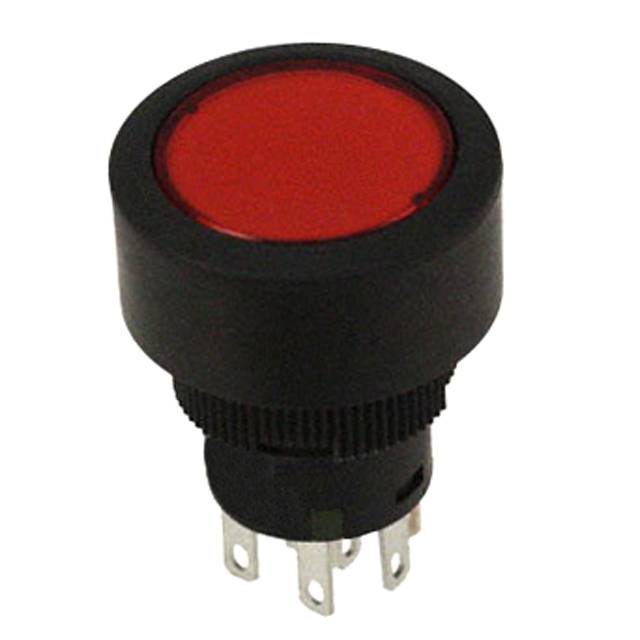

YB225CWCKW01-5C-CB
