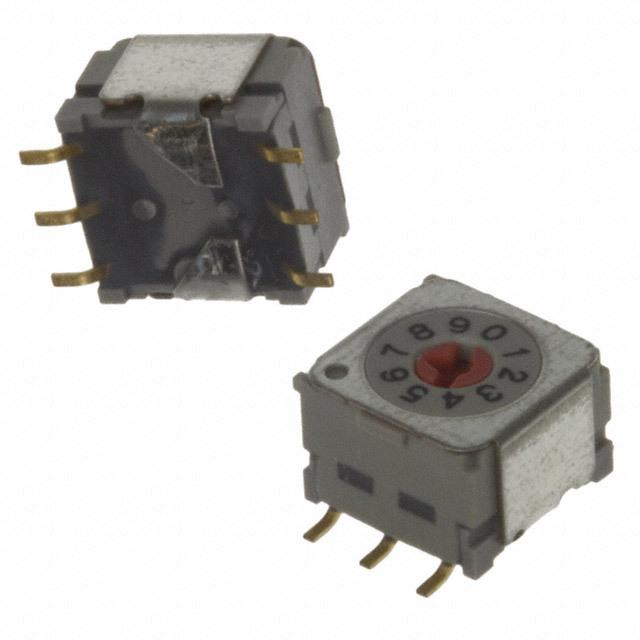

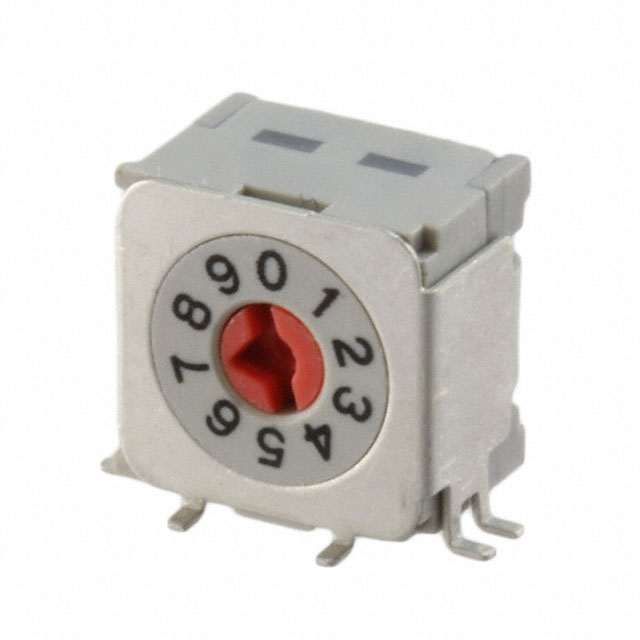

ND3FR16P-R
DIP Switches
- Manufacturer No:
- ND3FR16P-R
- Manufacture:
- NKK Switches
- Datasheet:
- ND3FR16P-R
- Description:
- SWITCH ROTARY DIP HEX 100MA 5V
In Stock
3809 pcs On sales
$5.31
Product Parameter
- Features
- Epoxy Sealed Terminals
- Contact Material
- Beryllium Copper
- Washable
- Yes
- Termination Style
- Gull Wing
- Packaging
- Cut Tape (CT)
- Height Above Board
- 0.220" (5.59mm)
- Part Status
- Active
- Number of Positions
- 16
- Actuator Type
- Rotary for Tool
- Current Rating (Amps)
- 100mA
- Body Material
- Polyamide (PA), Nylon, Glass Filled
- Operating Temperature
- -25°C ~ 85°C
- Mounting Type
- Surface Mount
- Actuator Level
- Flush, Recessed
- Pitch
- 0.100" (2.54mm), Full
- Contact Finish
- Gold
- Length
- 0.320" (8.13mm)
- Voltage Rating
- 5VDC
- Series
- ND3
- Electrical Life
- 20,000 Steps
- Circuit
- Hexadecimal
- Mechanical Life
- 20,000 Steps
