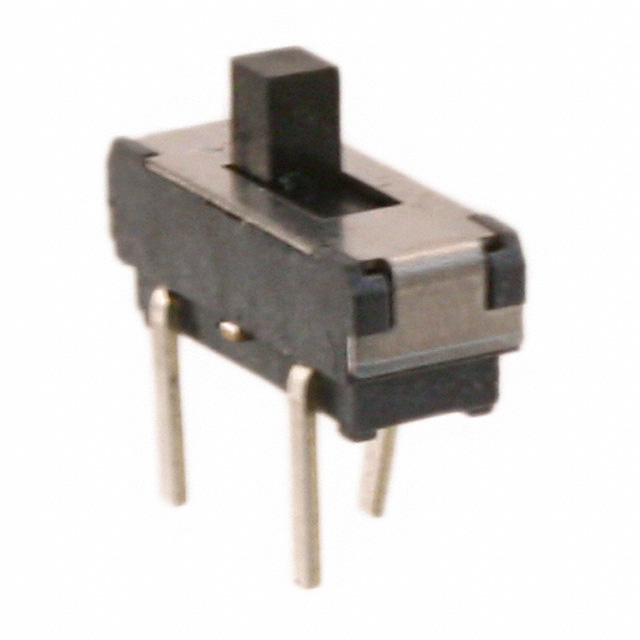

MS12ANW03
Slide Switches
- Manufacturer No:
- MS12ANW03
- Manufacture:
- NKK Switches
- Datasheet:
- MS12ANW03
- Description:
- SWITCH SLIDE SPDT 6A 125V
In Stock
11086 pcs On sales
$3.41
Product Parameter
- Contact Finish
- Silver
- Operating Temperature
- -30°C ~ 85°C
- Contact Timing
- Non-Shorting (BBM)
- Actuator Length
- 5.10mm
- Electrical Life
- 25,000 Cycles
- Series
- MS
- Mechanical Life
- 100,000 Cycles
- Circuit
- SPDT
- Operating Force
- -
- Features
- Epoxy Sealed Terminals
- Switch Function
- On-On
- Packaging
- Bulk
- Contact Material
- Silver Alloy
- Part Status
- Active
- Actuator Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Actuator Type
- Standard
- Termination Style
- PC Pin
- Mounting Type
- Through Hole
- Voltage Rating - AC
- 125V
- Switch Travel
- 2.20mm
- Current Rating (Amps)
- 6A (AC)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
MS12ANW03 Relevant information
MS12
SWITCH SLIDE SPDT 300MA 6V

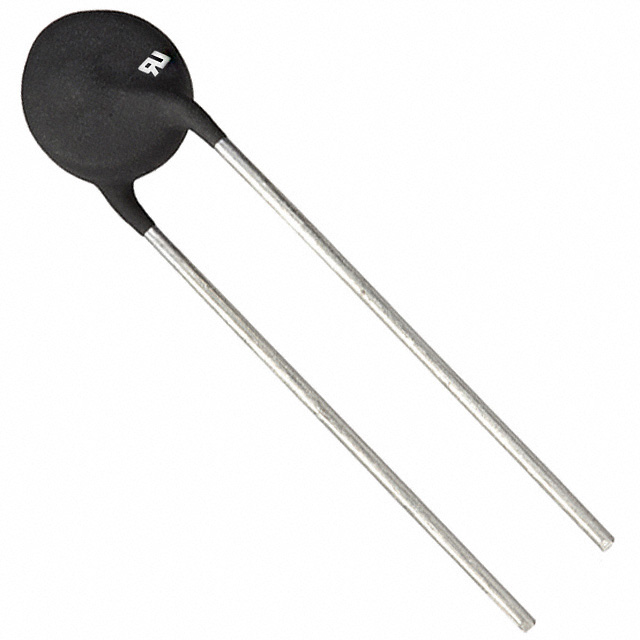

MS12 15102
ICL 150 OHM 25% 2A 13.5MM
MS12 15102-A
ICL 150 OHM 25% 2A 13.5MM
MS12 15102-B
ICL 150 OHM 25% 2A 13.5MM

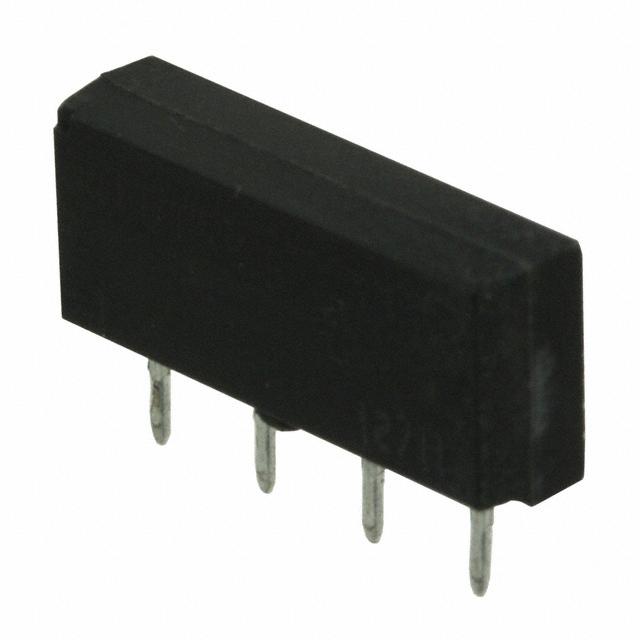

MS12-1A87-75D
