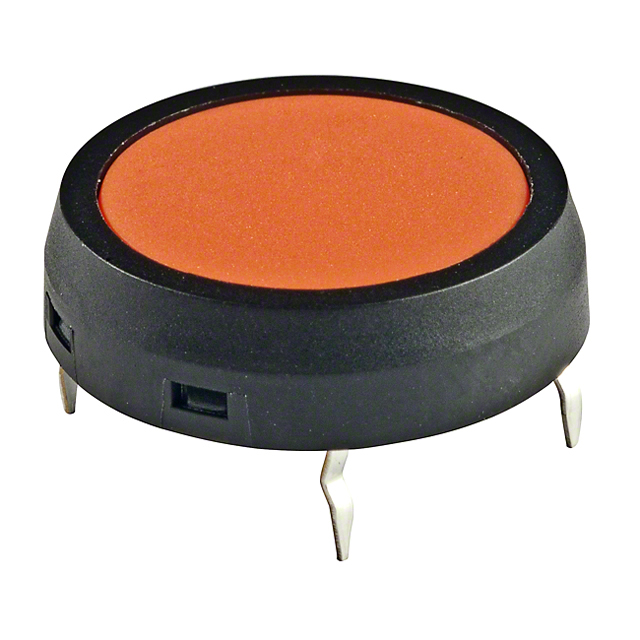

JF15SP2G
Tactile Switches
- Manufacturer No:
- JF15SP2G
- Manufacture:
- NKK Switches
- Datasheet:
- JF15SP2G
- Description:
- SWITCH TACTILE SPST-NO 0.05A 24V
In Stock
338 pcs On sales
$3.12
Product Parameter
- Packaging
- Tray
- Actuator Orientation
- Top Actuated
- Part Status
- Active
- Operating Temperature
- -25°C ~ 85°C
- Illumination
- Non-Illuminated
- Contact Rating @ Voltage
- 0.05A @ 24VDC
- Actuator Type
- Round Button
- Illumination Type, Color
- -
- Mounting Type
- Through Hole
- Actuator Length, Right Angle
- -
- Switch Travel
- 0.40mm
- Illumination Voltage (Nominal)
- -
- Mechanical Life
- 500,000 Cycles
- Actuator Height off PCB, Vertical
- 5.08mm
- Operating Force
- 300gf
- Series
- JF
- Switch Function
- Off-Mom
- Circuit
- SPST-NO
- Actuator Material
- Polyamide (PA), Nylon
- Outline
- 17.70mm x 17.70mm
- Termination Style
- PC Pin
- Features
- Process Sealed
- Ingress Protection
- -
