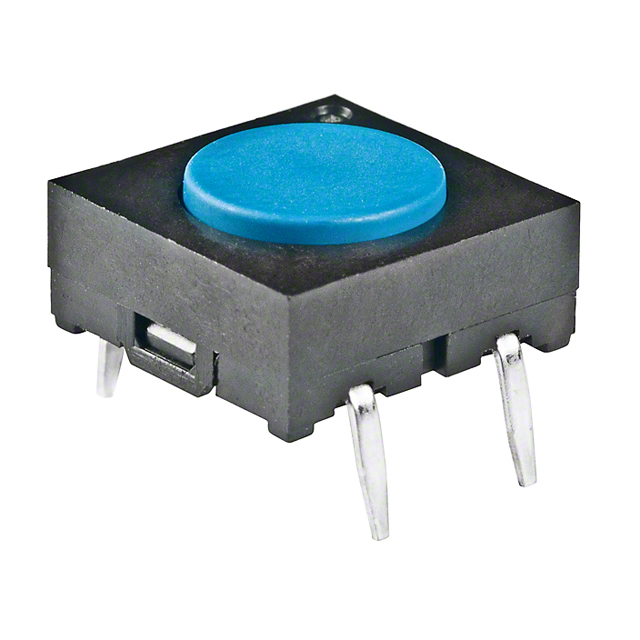

JB15LPC-JB
Tactile Switches
- Manufacturer No:
- JB15LPC-JB
- Manufacture:
- NKK Switches
- Datasheet:
- JB15LPC-JB
- Description:
- SWITCH TACTILE SPST-NO 0.05A 24V
In Stock
305 pcs On sales
$4.37
Product Parameter
- Illumination
- Illuminated
- Contact Rating @ Voltage
- 0.05A @ 24VDC
- Actuator Type
- Square Button
- Illumination Type, Color
- LED, Red
- Mounting Type
- Through Hole
- Actuator Length, Right Angle
- -
- Switch Travel
- 0.25mm
- Illumination Voltage (Nominal)
- 1.8 VDC
- Mechanical Life
- 5,000,000 Cycles
- Actuator Height off PCB, Vertical
- 11.20mm
- Operating Force
- 176gf
- Series
- JB
- Switch Function
- Off-Mom
- Circuit
- SPST-NO
- Actuator Material
- Polyacetal
- Outline
- 10.00mm x 10.00mm
- Termination Style
- PC Pin
- Features
- Process Sealed
- Ingress Protection
- -
- Packaging
- Bulk
- Actuator Orientation
- Top Actuated
- Part Status
- Active
- Operating Temperature
- -25°C ~ 70°C
