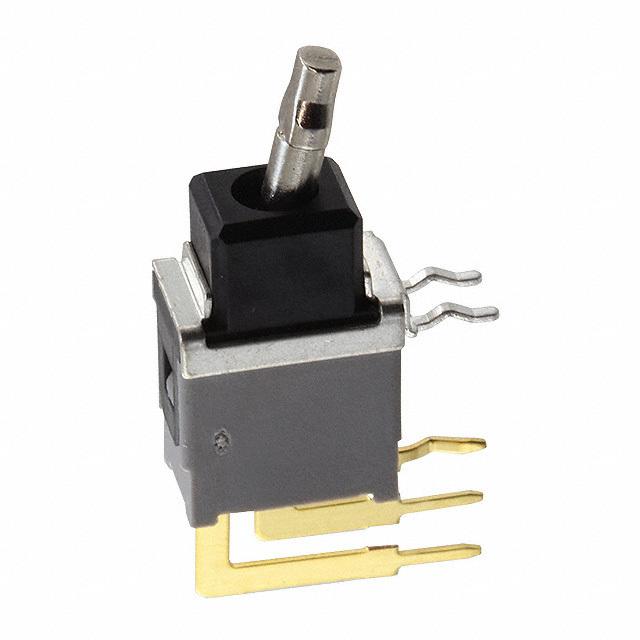

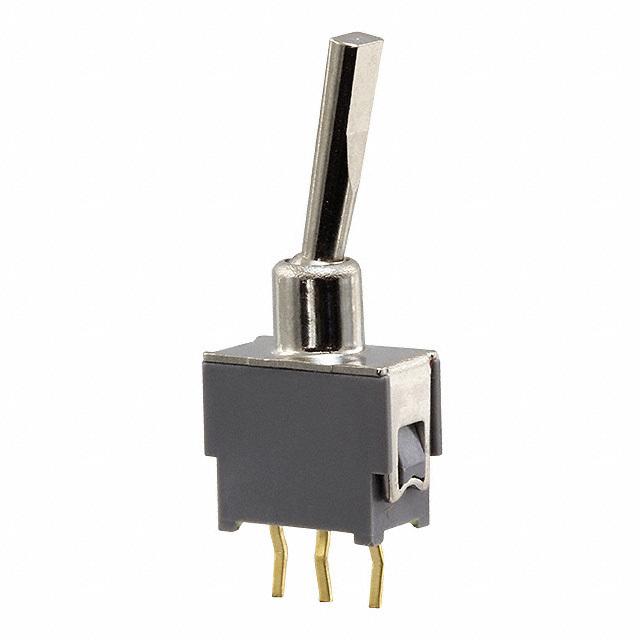

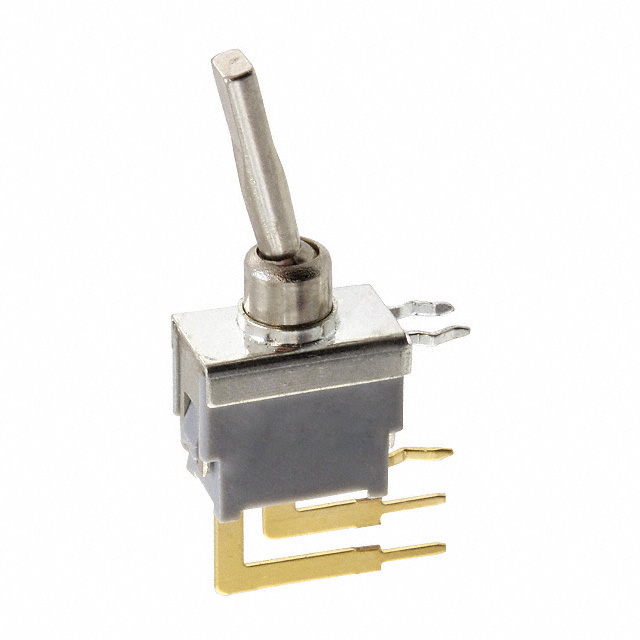

ATE1G-5M3-10-Z

Toggle Switches

Manufacturer No:: ATE1G-5M3-10-Z
Manufacture:: Nidec Copal Electronics
Datasheet:: ATE1G-5M3-10-Z
Description:: SWITCH TOGGLE SPDT 50MA 48V

In Stock

264 pcs On sales

$3.42

Product Parameter

Part Status: Active

Voltage Rating - DC: 48V

Illumination: Non-Illuminated

Current Rating (Amps): 50mA (AC/DC)

Actuator Type: Standard Round

Operating Temperature: -20°C ~ 85°C

Mounting Type: Through Hole, Right Angle

Panel Cutout Dimensions: -

Bushing Thread: Unthreaded

Illumination Type, Color: -

Actuator Length: 6.00mm

Illumination Voltage (Nominal): -

Electrical Life: 30,000 Cycles

Switch Function: Mom-Off-Mom

Series: ATE

Actuator Material: -

Circuit: SPDT

Termination Style: PC Pin

Features: Washable

Ingress Protection: -

Packaging: Tray

Voltage Rating - AC: 48V
