UVC2G4R7MPD1TD
Aluminum Electrolytic Capacitors
- Manufacturer No:
- UVC2G4R7MPD1TD
- Manufacture:
- Nichicon
- Package:
- Radial, Can
- Datasheet:
- UVC2G4R7MPD1TD
- Description:
- CAP ALUM 4.7UF 20% 400V RADIAL
In Stock
18658 pcs On sales
$0.73
Product Parameter
- Capacitance
- 4.7µF
- Surface Mount Land Size
- -
- Part Status
- Active
- Ripple Current @ Low Frequency
- 70mA @ 120Hz
- Applications
- General Purpose
- Ripple Current @ High Frequency
- 105mA @ 10kHz
- Lead Spacing
- 0.138" (3.50mm)
- ESR (Equivalent Series Resistance)
- -
- Polarization
- Polar
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Voltage - Rated
- 400V
- Series
- UVC
- Lifetime @ Temp.
- 2000 Hrs @ 105°C
- Ratings
- -
- Size / Dimension
- 0.315" Dia (8.00mm)
- Packaging
- Cut Tape (CT)
- Height - Seated (Max)
- 0.512" (13.00mm)
- Tolerance
- ±20%
- Operating Temperature
- -40°C ~ 105°C
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
UVC2G4R7MPD1TD Relevant information

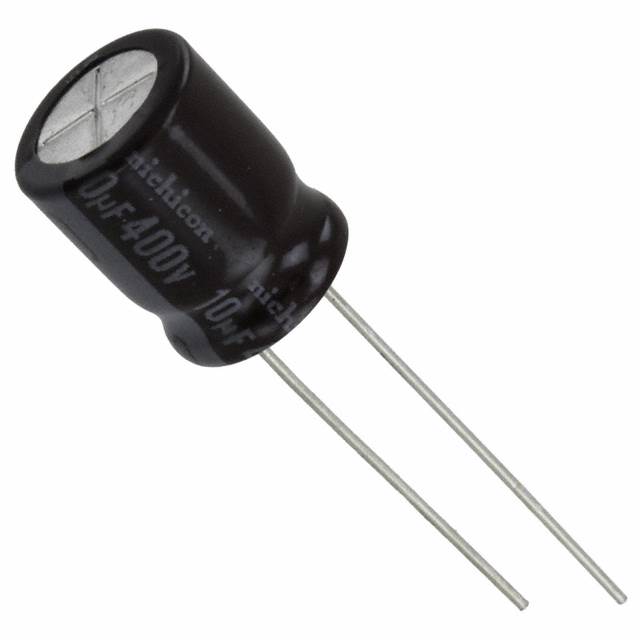

UVC2G100MPD
CAP ALUM 10UF 20% 400V RADIAL
UVC2G100MPD1TD
CAP ALUM 10UF 20% 400V RADIAL

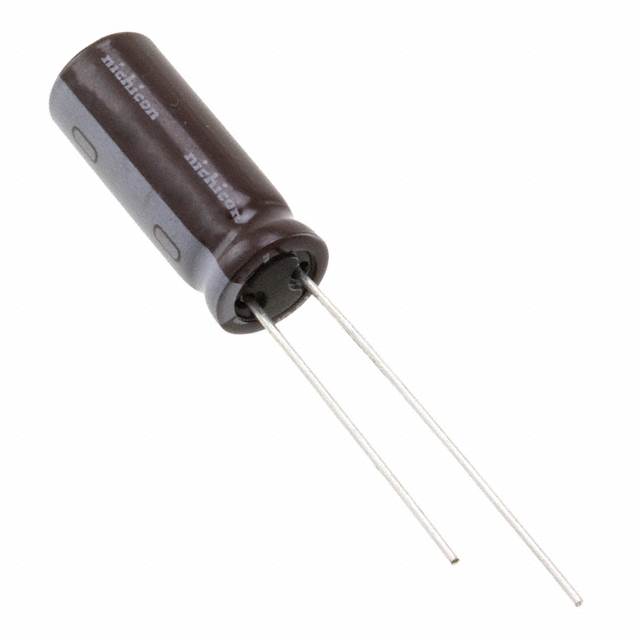

UVC2G120MPD
CAP ALUM 12UF 20% 400V RADIAL
UVC2G120MPD1TA
CAP ALUM 12UF 20% 400V THRU HOLE
UVC2G120MPD1TD
CAP ALUM 12UF 20% 400V THRU HOLE

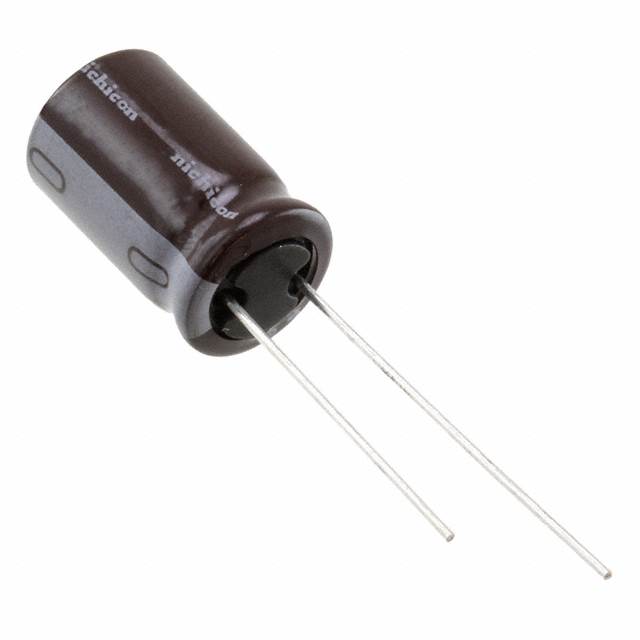

UVC2G150MPD
