UHE1V681MHD6
Aluminum Electrolytic Capacitors
- Manufacturer No:
- UHE1V681MHD6
- Manufacture:
- Nichicon
- Package:
- Radial, Can
- Datasheet:
- UHE1V681MHD6
- Description:
- CAP ALUM 680UF 20% 35V RADIAL
In Stock
7063 pcs On sales
$0.79
Product Parameter
- Capacitance
- 680µF
- Surface Mount Land Size
- -
- Part Status
- Active
- Ripple Current @ Low Frequency
- 1.425A @ 120Hz
- Applications
- General Purpose
- Ripple Current @ High Frequency
- 1.9A @ 100kHz
- Lead Spacing
- 0.197" (5.00mm)
- ESR (Equivalent Series Resistance)
- -
- Polarization
- Polar
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Series
- UHE
- Voltage - Rated
- 35V
- Ratings
- -
- Lifetime @ Temp.
- 10000 Hrs @ 105°C
- Impedance
- 35 mOhms
- Size / Dimension
- 0.492" Dia (12.50mm)
- Packaging
- Bulk
- Height - Seated (Max)
- 0.787" (20.00mm)
- Tolerance
- ±20%
- Operating Temperature
- -40°C ~ 105°C
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
UHE1V681MHD6 Relevant information

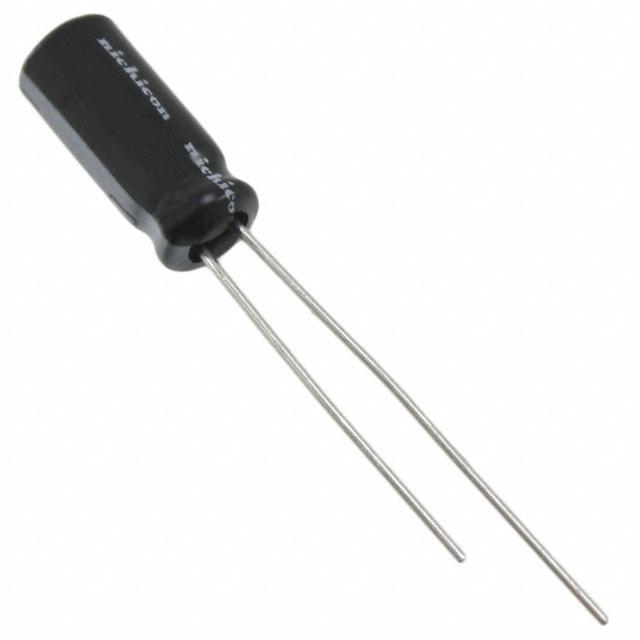

UHE1A101MDD
CAP ALUM 100UF 20% 10V RADIAL
UHE1A101MDD1TA
CAP ALUM 100UF 20% 10V RADIAL
UHE1A101MDD1TD
CAP ALUM 100UF 20% 10V RADIAL
UHE1A101MDT
CAP ALUM 100UF 20% 10V RADIAL

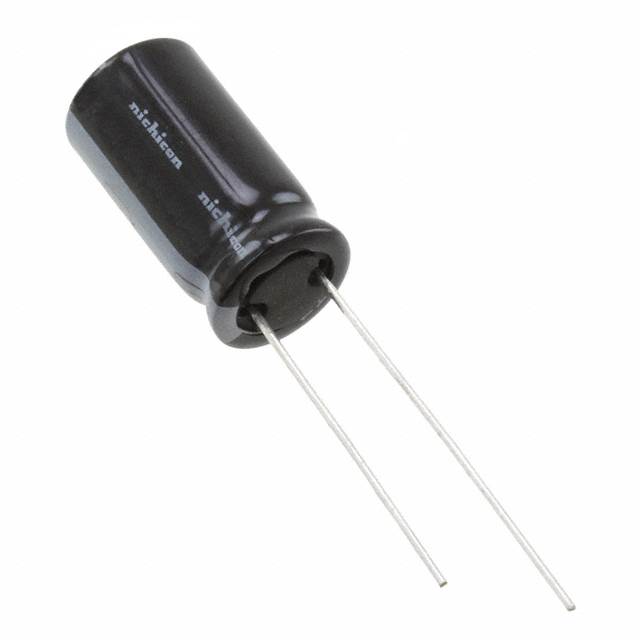

UHE1A102MPD
CAP ALUM 1000UF 20% 10V RADIAL

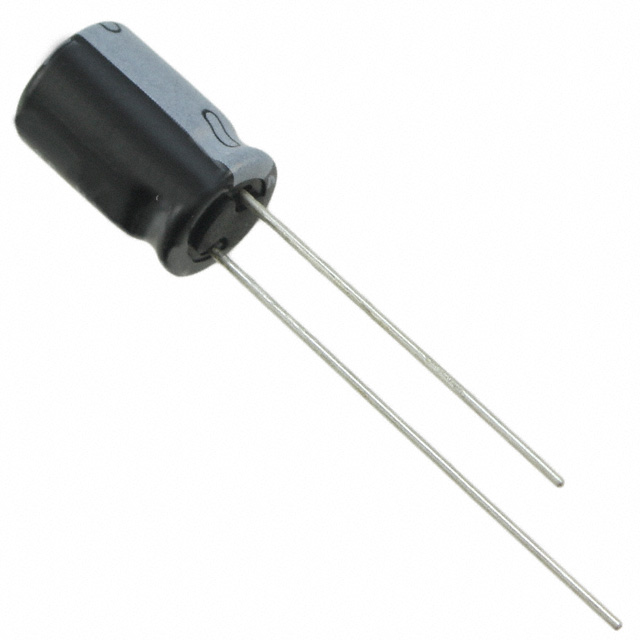

UHE1A102MPD1TA
