NMV1505SC
DC DC Converters
- Manufacturer No:
- NMV1505SC
- Manufacture:
- Murata Power Solutions Inc.
- Package:
- 7-SIP Module, 5 Leads
- Datasheet:
- NMV1505SC
- Description:
- DC DC CONVERTER +/-5V 1W
In Stock
0 pcs On sales
$10.73
Product Parameter
- Mounting Type
- Through Hole
- Voltage - Input (Min)
- 13.5V
- Power (Watts)
- 1W
- Current - Output (Max)
- 100mA, 100mA
- Package / Case
- 7-SIP Module, 5 Leads
- Control Features
- -
- Size / Dimension
- 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
- Type
- Isolated Module
- Number of Outputs
- 2
- Series
- NMV (1W)
- Voltage - Output 1
- 5V
- Features
- -
- Voltage - Output 2
- -5V
- Packaging
- Tube
- Voltage - Output 3
- -
- Efficiency
- 69%
- Voltage - Isolation
- 3kV
- Part Status
- Active
- Operating Temperature
- -40°C ~ 85°C
- Applications
- ITE (Commercial)
- Voltage - Input (Max)
- 16.5V
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
NMV1505SC Relevant information

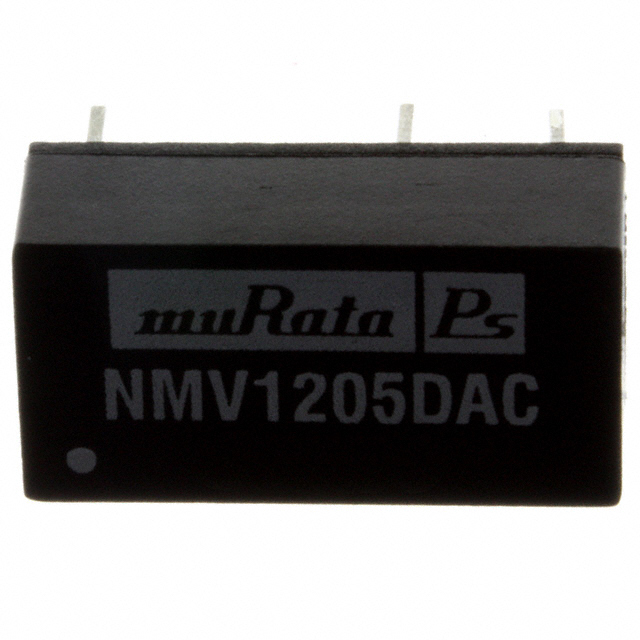

NMV1205DAC
