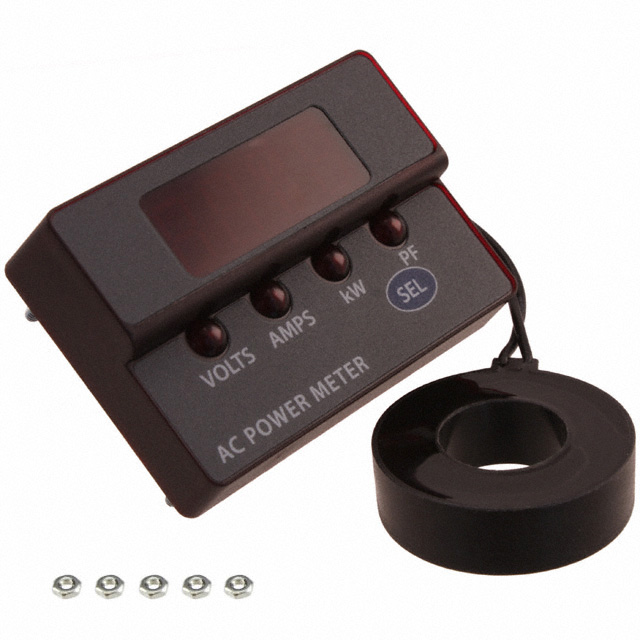

ACM20-4-AC1-R-F-C
Panel Meters
- Manufacturer No:
- ACM20-4-AC1-R-F-C
- Manufacture:
- Murata Power Solutions Inc.
- Datasheet:
- ACM20-4-AC1-R-F-C
- Description:
- MULTI METER 0-100A LED PNL MOUNT
In Stock
8 pcs On sales
$65
Product Parameter
- Measuring Range
- 0 ~ 100A
- Voltage - Supply
- 85 ~ 264VAC
- Termination Style
- Screw Terminal
- Ingress Protection
- -
- Type
- Multifunction Meter (Current, Voltage, Wattage, Frequency)
- Operating Temperature
- 0°C ~ 60°C
- Series
- ACM20
- Panel Cutout Dimensions
- Rectangular - 36.22mm x 22.10mm
- Weight
- 0.096 lb (43.54 g)
- Display Characters - Height
- 0.360" (9.14mm)
- Features
- Built In Current Transformer (Primary)
- Number of Characters Per Row
- 4
- Output Type
- -
- Part Status
- Active
- Display Type
- LED - Red Characters
- Mounting Type
- Panel Mount - Surface
