82223C
Fixed Inductors
- Manufacturer No:
- 82223C
- Manufacture:
- Murata Power Solutions Inc.
- Package:
- 1210 (3225 Metric)
- Datasheet:
- 82223C
- Description:
- FIXED IND 22UH 320MA 920 MOHM
In Stock
4729 pcs On sales
$0
Product Parameter
- Tolerance
- ±10%
- Supplier Device Package
- 1210
- Inductance
- 22µH
- Frequency - Self Resonant
- 25MHz
- Part Status
- Active
- Inductance Frequency - Test
- 10kHz
- Mounting Type
- Surface Mount
- Package / Case
- 1210 (3225 Metric)
- Material - Core
- -
- Type
- Wirewound
- Size / Dimension
- 0.126" L x 0.098" W (3.20mm x 2.50mm)
- Series
- 8200
- DC Resistance (DCR)
- 920mOhm Max
- Ratings
- -
- Current - Saturation
- -
- Q @ Freq
- 35 @ 1MHz
- Current Rating (Amps)
- 320mA
- Packaging
- Digi-Reel®
- Height - Seated (Max)
- 0.091" (2.30mm)
- Shielding
- Unshielded
- Operating Temperature
- -40°C ~ 85°C
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
82223C Relevant information
8222

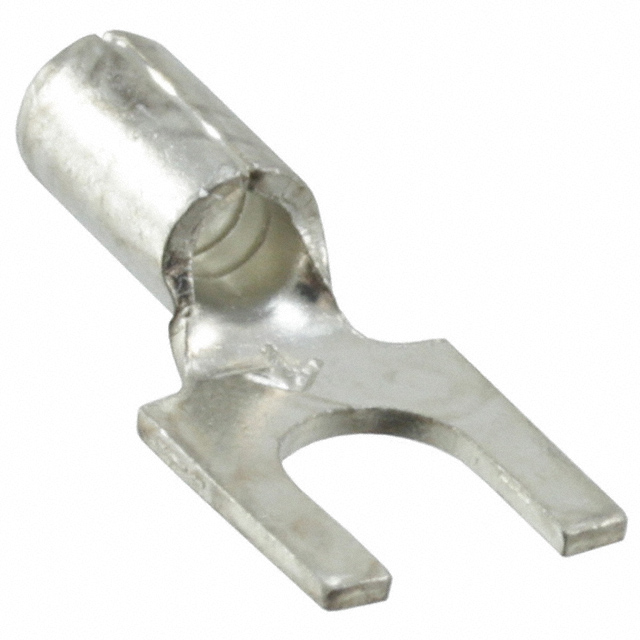

CONN SPADE TERM 14-16AWG #8

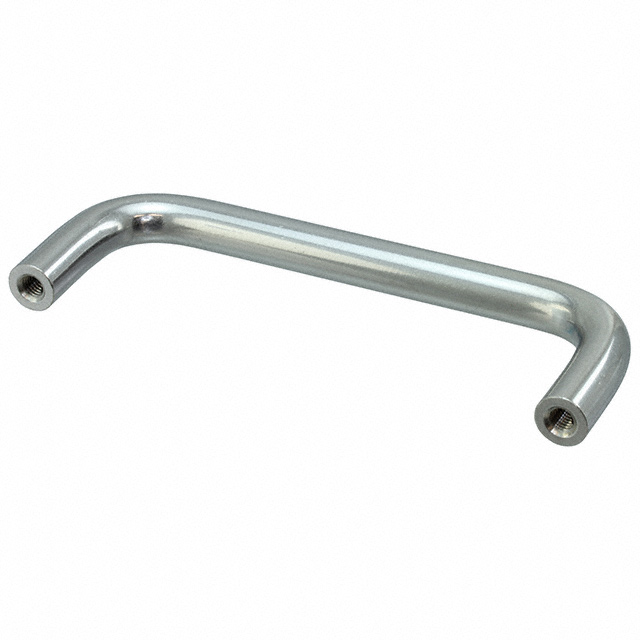

8222-1032-A-24
3/8 OD X 4.00 LG X 1-1/2 HT

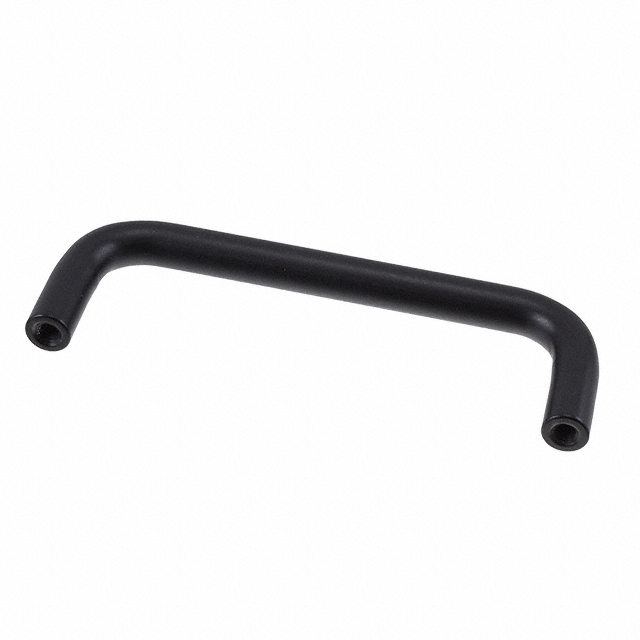

8222-1032-SS
