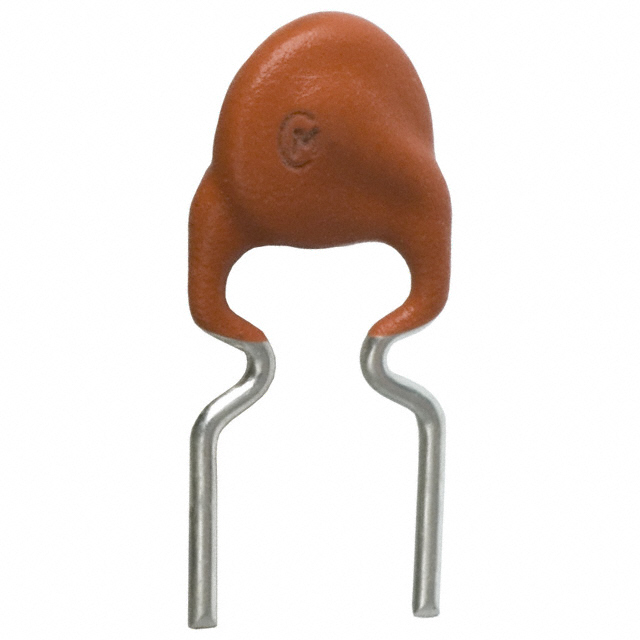

PTGL07AR820M9A51B0
PTC Resettable Fuses
- Manufacturer No:
- PTGL07AR820M9A51B0
- Manufacture:
- Murata Electronics North America
- Package:
- Radial, Disc
- Datasheet:
- PTGL07AR820M9A51B0
- Description:
- PTC RESET FUSE 265V 75MA RADIAL
In Stock
4678 pcs On sales
$1.57
Product Parameter
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 75mA
- Lead Spacing
- 0.197" (5.00mm)
- Current - Max
- 500mA
- Mounting Type
- Through Hole
- Voltage - Max
- 265V
- Package / Case
- Radial, Disc
- Thickness (Max)
- -
- Type
- Ceramic
- Size / Dimension
- 0.323" Dia x 0.256" T (8.20mm x 6.50mm)
- Series
- POSISTOR®, PTGL
- Current - Trip (It)
- 125mA
- Ratings
- -
- Height - Seated (Max)
- 0.559" (14.20mm)
- Approvals
- UL
- Operating Temperature
- -10°C ~ 60°C
- Packaging
- Bulk
- Resistance - 25°C (Typ)
- 82 Ohms
