LQH2MCN150K02L
Fixed Inductors
- Manufacturer No:
- LQH2MCN150K02L
- Manufacture:
- Murata Electronics
- Package:
- 0806 (2016 Metric)
- Datasheet:
- LQH2MCN150K02L
- Description:
- FIXED IND 15UH 200MA 1.6 OHM SMD
In Stock
4947 pcs On sales
$0
Product Parameter
- Q @ Freq
- -
- Current Rating (Amps)
- 200mA
- Packaging
- Digi-Reel®
- Height - Seated (Max)
- 0.037" (0.95mm)
- Shielding
- Unshielded
- Operating Temperature
- -40°C ~ 85°C
- Tolerance
- ±10%
- Supplier Device Package
- 0806 (2016 Metric)
- Inductance
- 15µH
- Frequency - Self Resonant
- 40MHz
- Part Status
- Active
- Inductance Frequency - Test
- 1MHz
- Mounting Type
- Surface Mount
- Package / Case
- 0806 (2016 Metric)
- Material - Core
- Ferrite
- Type
- Wirewound
- Size / Dimension
- 0.079" L x 0.063" W (2.00mm x 1.60mm)
- Series
- LQH2
- DC Resistance (DCR)
- 2.08Ohm Max
- Ratings
- -
- Current - Saturation
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
LQH2MCN150K02L Relevant information

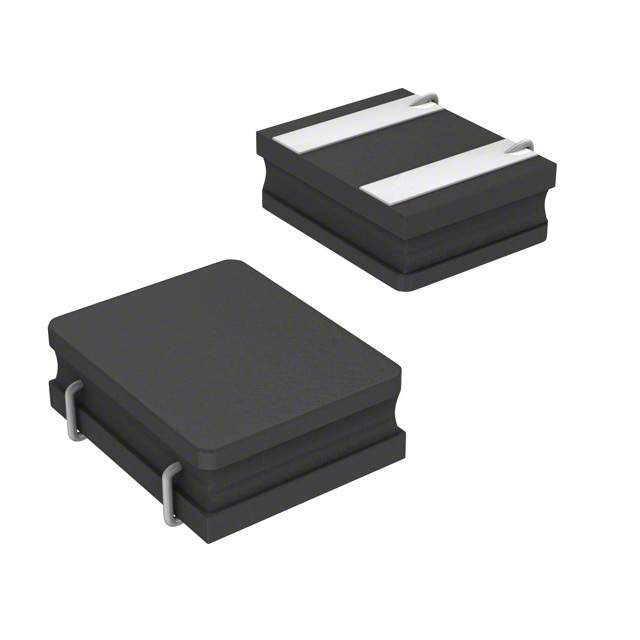

LQH2HPN100MDRL
FIXED IND 10UH 430MA 1.44 OHM

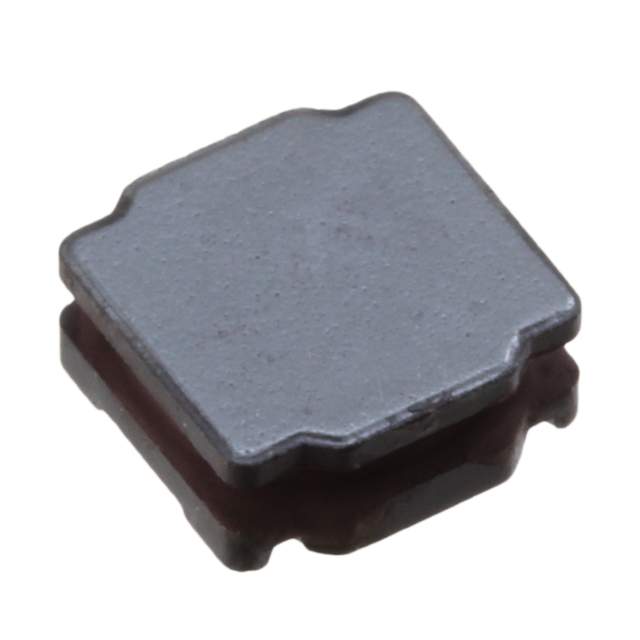

LQH2HPN100MG0L
