52559-2072
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- 52559-2072
- Manufacture:
- Molex
- Datasheet:
- 52559-2072
- Description:
- CONN FFC VERT 20POS 0.50MM SMD
In Stock
0 pcs On sales
$0
Product Parameter
- Mating Cycles
- 20
- Dielectric Material
- Polyamide (PA46), Nylon 4/6
- Mounting Type
- Surface Mount
- Number of Positions
- 20
- Actuator Color
- -
- Current Rating (Amps)
- 0.5A
- Cable End Type
- Straight, Tapered
- Operating Temperature
- -40°C ~ 85°C
- Contact Finish
- Tin Bismuth
- Connector/Contact Type
- Contacts, Vertical - 1 Sided
- Pitch
- 0.020" (0.50mm)
- Flat Flex Type
- FFC, FPC
- Contact Finish Thickness
- 39.4µin (1.00µm)
- Series
- Easy-On 52559
- Voltage Rating
- 50V
- Material Flammability Rating
- UL94 V-0
- Features
- Zero Insertion Force (ZIF)
- Locking Feature
- Slide Lock
- Packaging
- Tape & Reel (TR)
- Contact Material
- Phosphor Bronze
- Part Status
- Obsolete
- Actuator Material
- Polyphenylene Sulfide (PPS)
- Termination
- Solder
- FFC, FCB Thickness
- 0.30mm
- Housing Color
- -
- Height Above Board
- 0.154" (3.90mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
52559-2072 Relevant information
5255
BOX ALUM UNPAINTED 4.25"LX1.5"W
52558-4
CONN RING D-SHAPE 300-350MCM 1/2

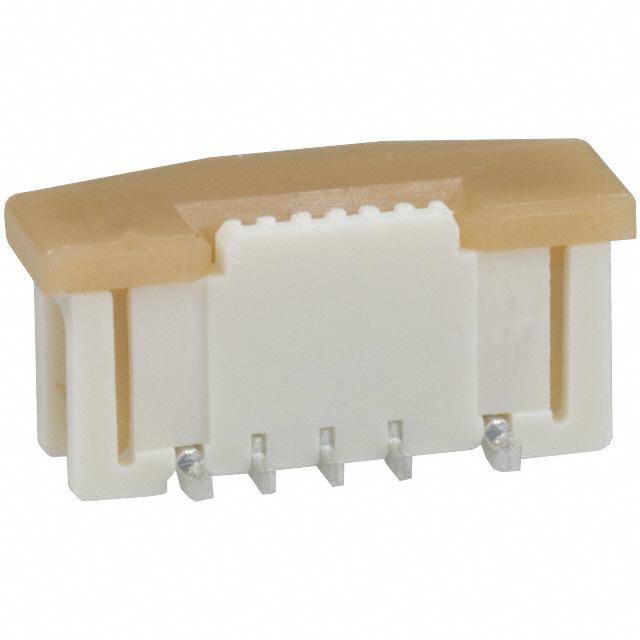

52559-0672
CONN FFC VERT 6POS 0.50MM SMD
52559-0692
CONN FFC VERT 6POS 0.50MM SMD

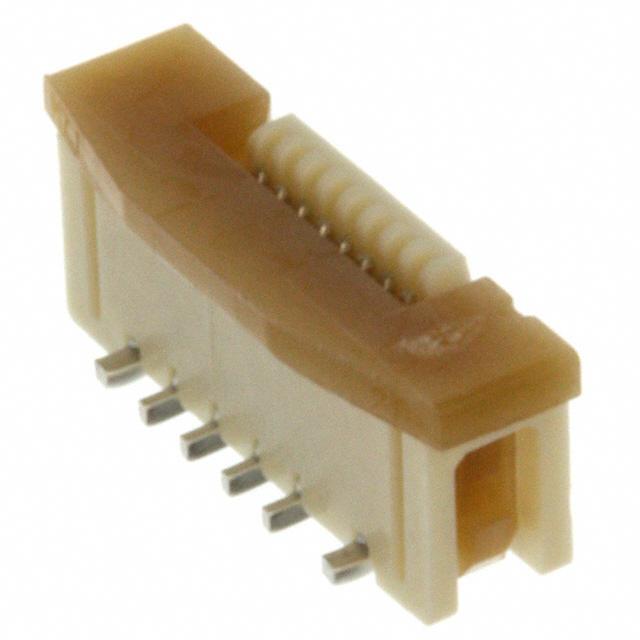

52559-0870
