15-38-8148
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- 15-38-8148
- Manufacture:
- Molex
- Datasheet:
- 15-38-8148
- Description:
- CONN CIC FFC RCPT 14POS 2.54MM
In Stock
0 pcs On sales
$3.02
Product Parameter
- Packaging
- Tube
- Contact Material
- Phosphor Bronze
- Part Status
- Active
- Actuator Material
- -
- Termination
- IDC
- FFC, FCB Thickness
- 0.13 ~ 0.28mm, 0.30mm
- Housing Color
- Black
- Height Above Board
- -
- Mating Cycles
- 25
- Dielectric Material
- Polyester, Glass Filled
- Mounting Type
- Free Hanging (In-Line)
- Number of Positions
- 14
- Actuator Color
- -
- Current Rating (Amps)
- -
- Cable End Type
- Straight
- Operating Temperature
- -40°C ~ 105°C
- Contact Finish
- Tin
- Connector/Contact Type
- Receptacle
- Pitch
- 0.100" (2.54mm)
- Flat Flex Type
- CIC, FFC
- Contact Finish Thickness
- 150.0µin (3.81µm)
- Series
- SL 70430
- Voltage Rating
- 250V
- Material Flammability Rating
- UL94 V-0
- Features
- -
- Locking Feature
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
15-38-8148 Relevant information

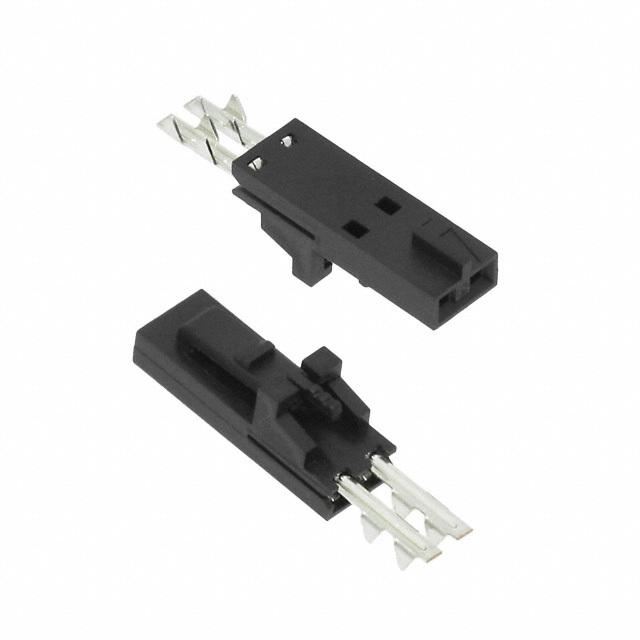

15-38-8020
CONN CIC FFC RCPT 2POS
15-38-8028
CONN CIC FFC RCPT 2POS 2.54MM

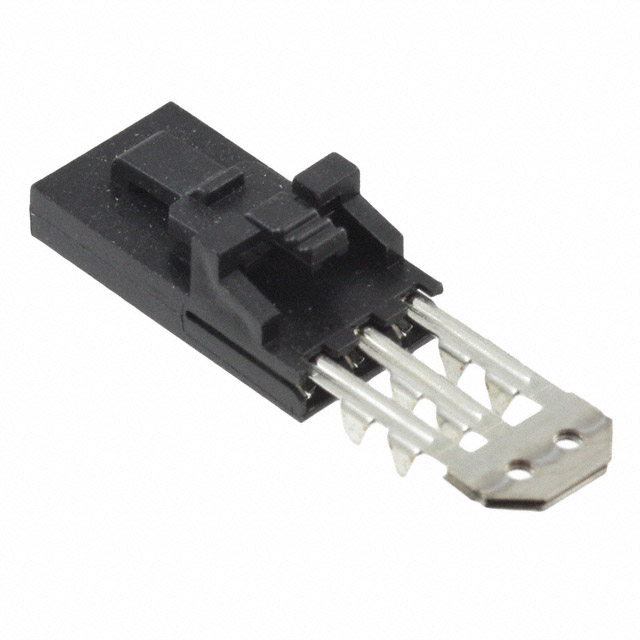

15-38-8030
CONN CIC FFC RCPT 3POS 2.54MM
15-38-8038
CONN CIC FFC RCPT 3POS 2.54MM

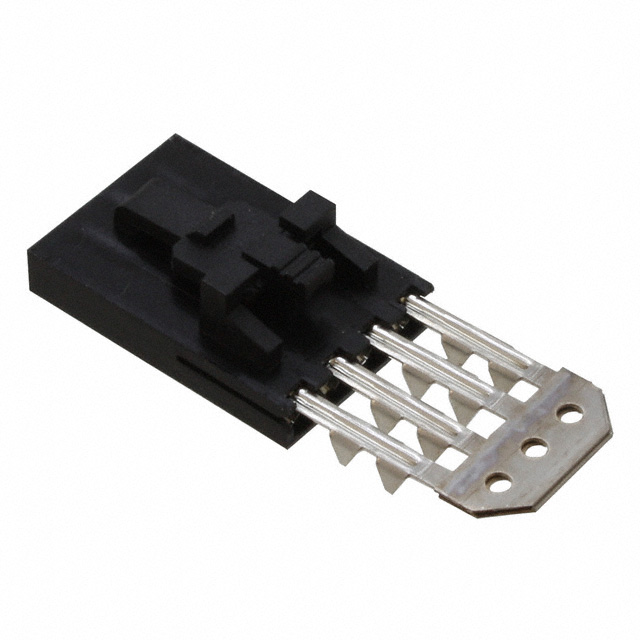

15-38-8040
