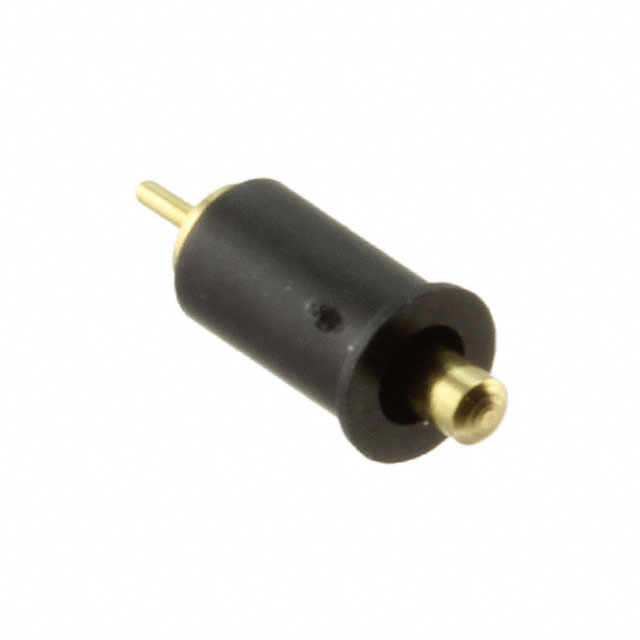

807-22-001-30-006101
Contacts, Spring Loaded and Pressure
- Manufacturer No:
- 807-22-001-30-006101
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 807-22-001-30-006101
- Description:
- CONTACT SPRING LOADED SMD GOLD
In Stock
2583 pcs On sales
$0.75
Product Parameter
- Plunger Size
- 0.042" (1.07mm) Dia
- Recommended Working Height
- 0.208" (5.29mm)
- Mating Cycles
- 1000000
- Material Flammability Rating
- UL94 V-0
- Mounting Type
- Surface Mount
- Operating Force - Mid Compression
- 60gf
- Contact Finish
- Gold
- Contact Material
- Copper Alloy
- Pad Layout Dimension
- Circular - 0.072" (1.83mm)
- Current Rating (Amps)
- 2A
- Series
- 807
- Operating Temperature
- -
- Features
- Pick & Place
- Maximum Working Height
- 0.236" (6.00mm)
- Packaging
- Bulk
- Minimum Working Height
- -
- Part Status
- Active
- Contact Finish Thickness
- 20.0µin (0.51µm)
- Contact Type
- Sleeve & Plunger
- Operating Force - Initial
- 25gf
