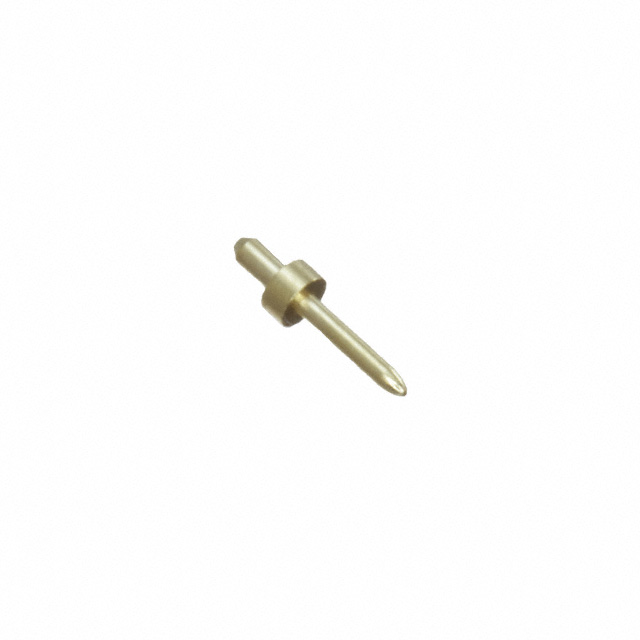

3136-3-00-15-00-00-08-0
Terminals - PC Pin, Single Post Connectors
- Manufacturer No:
- 3136-3-00-15-00-00-08-0
- Manufacture:
- Mill-Max Manufacturing Corp.
- Datasheet:
- 3136-3-00-15-00-00-08-0
- Description:
- CONN PC PIN CIRC 0.040DIA GOLD
In Stock
6704 pcs On sales
$0.2
Product Parameter
- Flange Diameter
- 0.078" (1.98mm)
- Contact Material
- Brass Alloy
- Series
- 3136
- Insulation Color
- -
- Packaging
- Bulk
- Length - Overall
- 0.365" (9.27mm)
- Insulation
- Non-Insulated
- Length - Above Flange
- 0.145" (3.68mm)
- Part Status
- Active
- Length - Below Flange
- 0.180" (4.57mm)
- Termination
- Solder
- Material - Insulation
- -
- Mounting Type
- Through Hole
- Mounting Hole Diameter
- 0.043" (1.09mm)
- Terminal Type
- PC Pin
- Pin Size - Above Flange
- 0.040" (1.02mm) Dia
- Contact Finish
- Gold
- Pin Size - Below Flange
- 0.030" (0.76mm) Dia
- Terminal Style
- Double End
- Contact Finish Thickness
- 10.0µin (0.25µm)
- Board Thickness
- 0.125" (3.18mm)
