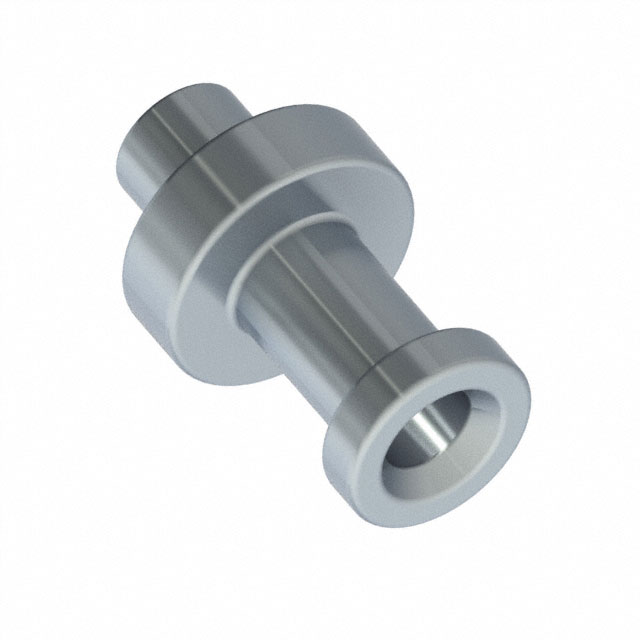

2506-2-00-44-00-00-07-0

Terminals - Turret Connectors

Manufacturer No:: 2506-2-00-44-00-00-07-0
Manufacture:: Mill-Max Manufacturing Corp.
Datasheet:: 2506-2-00-44-00-00-07-0
Description:: TERM TURRET SINGLE L=3.96MM

In Stock

4531 pcs On sales

$0.24

Product Parameter

Contact Material: Brass Alloy

Series: 2506

Insulation Color: -

Insulation: Non-Insulated

Length - Overall: 0.240" (6.10mm)

Part Status: Active

Number of Turrets: Single

Termination: Swage

Length - Above Board: 0.156" (3.96mm)

Mounting Type: Through Hole

Length - Below Flange: 0.084" (2.13mm)

Terminal Type: Single End

Material - Insulation: -

Contact Finish: Silver

Diameter - Turret Head: 0.093" (2.36mm)

Board Thickness: 0.062" (1.57mm)

Mounting Hole Diameter: 0.067" (1.70mm)

Flange Diameter: 0.125" (3.18mm)

Contact Finish Thickness: 300.0µin (7.62µm)

Staking Side ID: 0.043" (1.09mm)

Staking Side OD: 0.062" (1.57mm)
